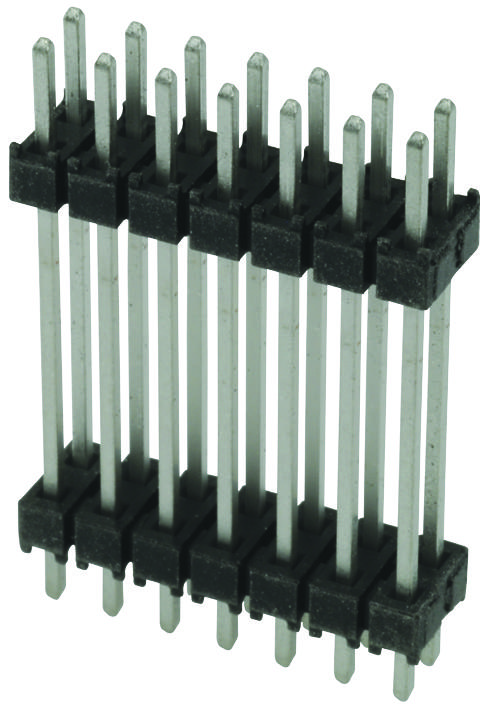

SAMTEC DW0912TD670LL High-Density Board Stacker Connector
This is a high-density, flexible rectangular connector designed for reliable board-to-board connections in electronic systems. Featuring a 0.090 inch (2.29 mm) pitch, it offers excellent mechanical stability with optional longer tails. Made with durable materials such as gold or tin plating over phosphor bronze contacts, it operates within -55°C to +125°C temperature range. This RoHS compliant connector is suitable for applications requiring minimal space, high current capacity, and secure electrical contact. Ideal for complex PCB assemblies and modular electronic designs, it ensures consistent performance and easy installation.
SAMTEC DW0912TD670LL High-Density Board Stacker Connector Specifications:
- Pitch: 0.090 inches (2.29 mm)
- Material: Phosphor Bronze with Gold or Tin over Nickel plating
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Body Material: Black Glass Filled Polyester or Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Insulator Material: Black Glass Filled Polyester, Liquid Crystal Polymer or Natural Liquid Crystal Polymer
- Number of Pins: Varies (see specific model)
- Connector Style: Board Stacker
- Board Spacing: Compatible with standard PCB layouts
- Dimensions: Length varies with option, typical tail length approximately 0.100 inches (2.54mm)
- Other Platings: Gold or Tin over Nickel
- Certifications: RoHS compliant
- Mechanical Stability: Recommended use of mechanical board spacers for gold or selective gold plating
