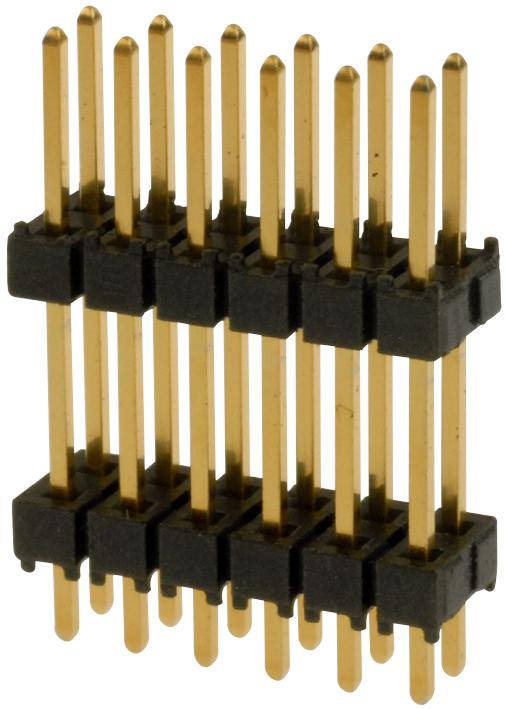

SAMTEC DW1012LD500 Stacking Connector
The DW1012LD500 is a flexible board stacking connector designed for reliable multi-layer circuit connections. Constructed with high-quality insulating materials like black glass-filled polyester and crystal polymer, it features phosphor bronze terminals plated with gold or tin for durability and corrosion resistance. Operating temperature ranges from -55°C to +125°C depending on plating, ensuring high-performance stability. Its compact dimensions, precision pin alignment, and RoHS compliance make it suitable for electronics requiring secure, space-saving connections. An ideal choice for dense electronic assemblies and stackable device configurations.
SAMTEC DW1012LD500 Stacking Connector Specifications:
- Insulator Material: Black Glass-Filled Polyester (DW, EW, ZW), Crystal Polymer (HW)
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Dimensions: Length around 19.46 mm to 21.08 mm, height varies by option, typical tail length approximately 2.54 mm (.100 inches)
- Number of Pins: varies by option, for example, 8, 19, 20 pins
- RoHS Compliant: Yes
- Solderability: RoHS compliant, lead-free soldered
- Certifications: RoHS, REACH
- Type: Board stacking connector
- Color: Black (DW, ZW), Natural (HW)
- Application: Multi-layer electronic devices, stackable circuit connections
Buy the Samtec Series Stackers Connector: DW1012LD500
Enhance your electronic assemblies with the Samtec DW1012LD500 stacking connector. Engineered for reliability, its high-quality materials ensure superior performance in dense, multi-layer circuit configurations. The connector supports a wide temperature range, resistant to corrosion with gold or tin plating, and complies with RoHS standards. Its compact size facilitates space-saving designs, making it perfect for various electronic devices requiring secure, durable, and space-efficient connectivity solutions. Purchase online now to upgrade your electronics with trusted, high-performance components.
Get Samtec DW1012LD500 today—designed for high reliability and multi-layer connectivity in dense electronic assemblies.
