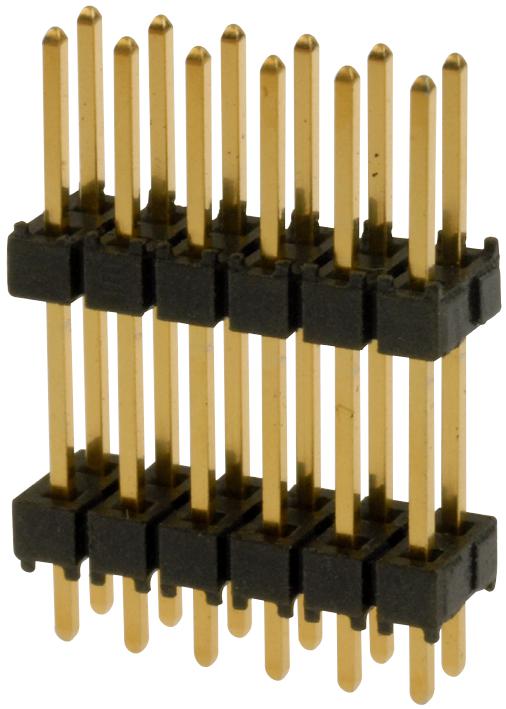

SAMTEC DW1209TD500 Stacking Connector
The DW1209TD500 is a high-quality, flexible board stacking connector featuring a .100 inch (2.54 mm) pitch and a 0.025 square inch flexible contact area. Designed for secure and reliable electrical connections, it supports operating temperatures from -55°C to +125°C with gold plating and up to +105°C with tin plating. Crafted from high-performance insulator materials such as black glass-filled polyester or liquid crystal polymer, it is RoHS compliant and suitable for demanding applications requiring stability and durability. The connector is ideal for dense circuit board stacking with precise pin alignment and corrosion resistance.
SAMTEC DW1209TD500 Stacking Connector Specifications:
- Pitch: 2.54 mm (0.100 inches)
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel
- Insulator Material: Black Glass-filled Polyester, Liquid Crystal Polymer
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliance: Yes
- Wave Solderable: Yes
- Number of Pins: varies per configuration
- Cable Mates: options include ZW, HW, EW
- Dimensions: Width varies, typical length approximately 21.08 mm (0.83 inches), height varies
- Mechanical Stability: Use mechanical spacers recommended for gold-plated connectors
- Application: Circuit board stacking, secure electrical interconnects
- Certifications: RoHS compliant, Wave Solderable
- Compatibility: Supports multiple configurations with mate options
- Durability: Designed for reliable, long-term use in demanding environments
Buy the Buy Samtec Stacking Connector Part Number DW1209TD500 Online
Purchase the Samtec DW1209TD500 stacking connector online now to benefit from its precise 2.54 mm pitch, high-quality materials, RoHS compliance, and excellent temperature range. Designed for dense circuit board applications, this connector offers reliable electrical connections, robust construction, and compatibility with various mate options. Whether you need gold or tin plating for enhanced corrosion resistance, the DW1209TD500 ensures secure, long-lasting performance. Buy online today to streamline your assembly process and enhance your projects with trusted quality.
Order your Samtec DW1209TD500 series high-performance stacking connector today and ensure your circuit boards are connected with durability and precision.
Frequently Asked Questions
Where can I buy SAMTEC DW1209TD500?
You can click on the BUY or RFQ button to purchase DW1209TD500 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part DW1209TD500?
You can download the DW1209TD500 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of DW1209TD500?
SAMTEC
