SAMTEC DW1309GD315 Stacker Connector
The product is a stacker connector series designed for electronic applications, featuring a flexible design with a 0.025 square inch section, suitable for PCB connections. Constructed with high-quality materials, it offers robust mechanical stability, RoHS compliance, and temperature tolerance from -55°C to +125°C depending on plating. It features precise dimensions with multiple pin configurations, including gold or tin over phosphor bronze, ensuring reliable electrical contact and durability. This connector series is ideal for high-density, modular electronic assemblies requiring secure and efficient stacking connections.
SAMTEC DW1309GD315 Stacker Connector Specifications:
- Insulator Material: Black Glass Filled Polyester for DW, EW, ZW; Natural Liquid Crystal Polymer for HW
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel, with optional other platings
- Operating Temp Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- Dimensions: Length varies with model, typical pin length 0.090 inch (2.29 mm), tail length approximately 0.100 inch (2.54 mm)
- Number of Pins: Varies by configuration, with available options for different heights and spacing
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Connector Style: Stacker with mechanical stability enhancements, recommended spacers for gold plated models
- Certifications: RoHS compliant, designed per industry standards
- Note: Non-standard, non-returnable series with specific configuration options and optional longer tails for mechanical stability

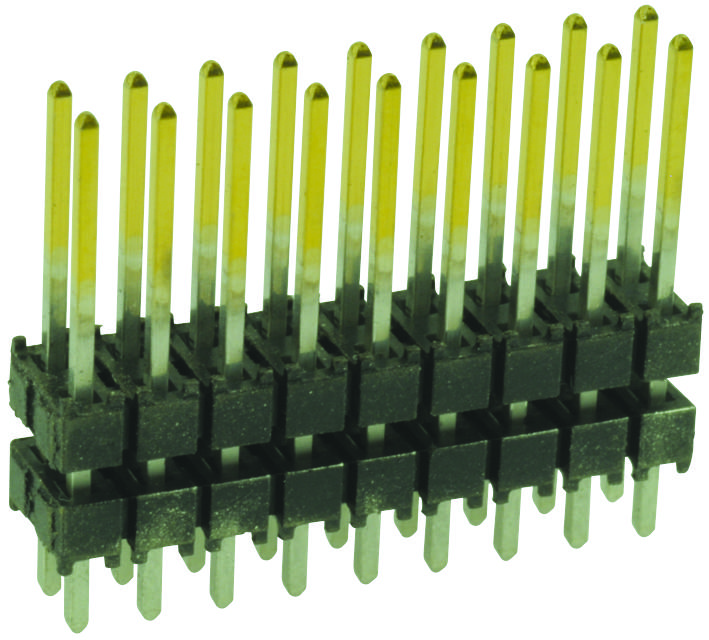

Buy the Buy Samtec Stacker Connector Part Number DW1309GD315 Online
