SAMTEC DW1309TD485 Stacker Connector
This connector series offers flexible and versatile stacking solutions with a range of sizes and materials. Designed for reliable electrical connections, these connectors feature durable contact materials including phosphor bronze with gold or tin plating for optimal conductivity and corrosion resistance. Operating temperature ranges from -55°C to +125°C, supporting various industrial applications. RoHS compliant and solderable, they are suitable for high-performance electronic assemblies requiring mechanical stability and precision. These connectors are non-standard, non-returnable, and ideal for space-constrained environments with specific mechanical and electrical criteria.
SAMTEC DW1309TD485 Stacker Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze with Au or Sn Plating
- Plating: Gold or Tin over Nickel
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Solderability: Solderable
- Dimensions: Length varies with model, typical pin spacing 2.54 mm (.100 inch), hole diameter approximately 0.09 inch (2.29 mm), overall length and height vary by configuration
- Number of Pins: Varies across options, up to 8 rows with different heights and spacing
- Design Features: Mechanical stability recommended with spacers for gold or selective gold plating applications
- Application Notes: Non-standard, non-returnable, optimized for high-density PCB connections
- Temperature Range: -55°C to +125°C depending on plating
- Certifications: RoHS Compliant

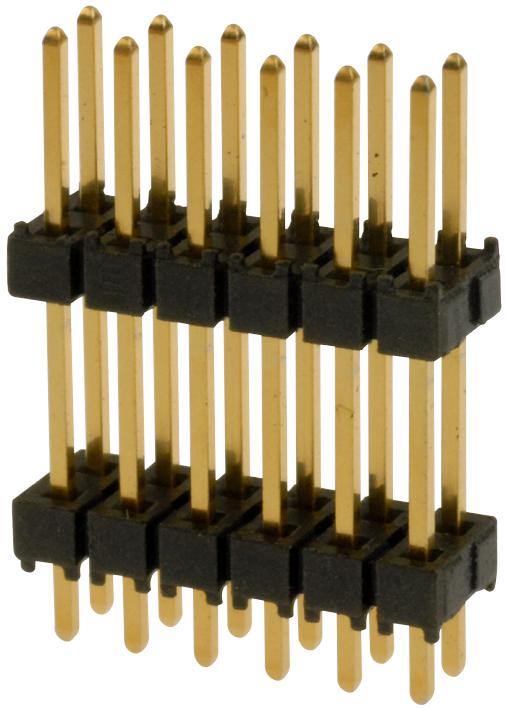

Buy the Buy Samtec Stacking Connector Part Number DW1309TD485 Online
Purchase the Samtec stacking connector DW1309TD485 online for high-quality, durable, and reliable electronic connection solutions. Offerings include flexible configurations supporting various pin counts and heights, with robust phosphor bronze contacts plated with gold or tin for optimal conductivity and corrosion resistance. Designed to operate effectively from -55°C to +125°C, these connectors ensure stability in challenging environments. They comply with RoHS standards and are solderable for easy assembly. Ideal for dense electronic assemblies requiring precise mechanical and electrical performance, enabling quick procurement and streamlined deployment in your projects.
Get Samtec DW1309TD485 today—designed for reliable, space-efficient stacker connections with exceptional mechanical stability and high-temperature performance.
