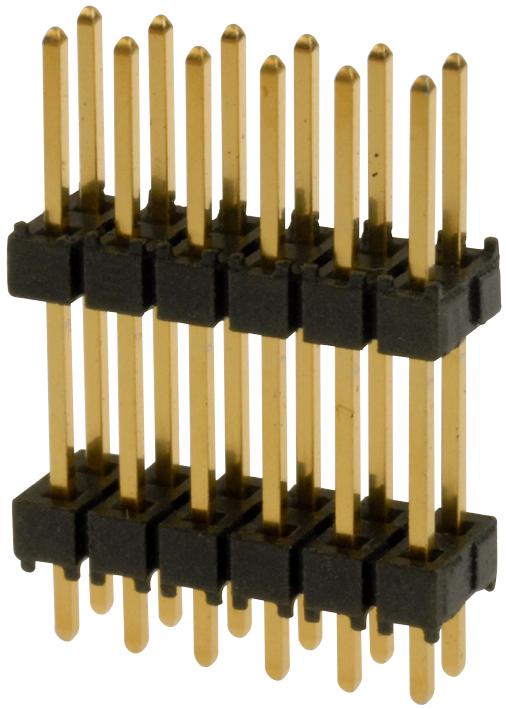

SAMTEC DW1409TD500 High-Density Connector
The product is a flexible, compact connector with a 0.025 SQ E (square) cross-section, designed for high-density board stacking applications. It features a black glass-filled polyester insulator, phosphor bronze terminal material with optional gold or tin plating, and supports operating temperatures from -55°C to +125°C. Suitable for industrial and electronic assembly, it offers RoHS compliance, wave solderability, and is non-returnable for specialized uses. The connector mates with specific types, including DW, EW, ZW, and HW, ensuring reliable, durable connections in demanding environments.
SAMTEC DW1409TD500 High-Density Connector Specifications:
- Insulator Material: Black Glass-filled Polyester (DW, EW, ZW), Natural Liquid Crystal Polymer (HW)
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Solderability: RoHS-compliant wave soldering compatible
- Connector Height: 1.009 inches (25.66 mm)
- Length: 20.00 inches (50.80 cm)
- Pin Count: 8 to 100 pins
- Material: Black Glass-filled Polyester (DW, EW, ZW), Liquid Crystal Polymer (HW)
- Application: Board stacking, high-density electronic connections
- Additional Notes: Mechanical stability can be enhanced with board spacers; non-standard, non-returnable series.
Buy the Samtec DW1409TD500 – Reliable Board Stacking Connectors for Industrial Applications
Secure your electronic assemblies with the high-quality, RoHS compliant connector designed for dense, industrial, and electronic applications. Featuring durable phosphor bronze contacts with optional gold or tin plating, it supports operating temperatures up to 125°C. Easy to install with wave solderability, ensuring excellent mechanical stability. Ideal for board stacking, it offers a compact, flexible design suitable for demanding environments. Purchase online today and ensure reliable, long-lasting connections with this versatile connector series by Samtec.
Buy Samtec DW1409TD500 now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC DW1409TD500?
You can click on the BUY or RFQ button to purchase DW1409TD500 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part DW1409TD500?
You can download the DW1409TD500 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of DW1409TD500?
SAMTEC
