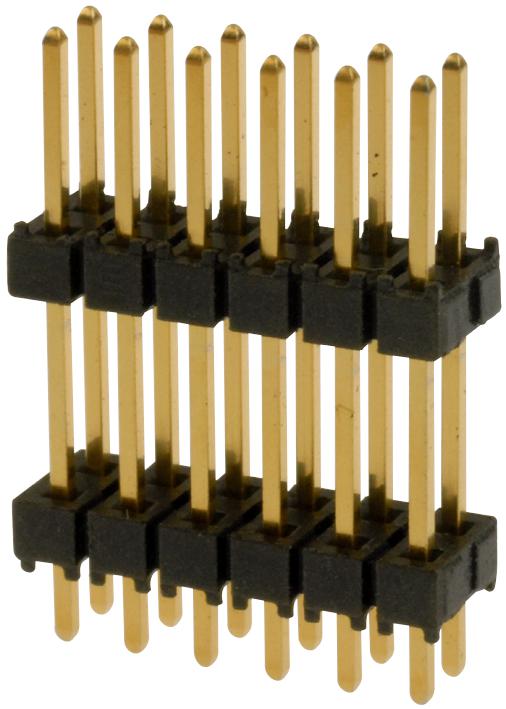

SAMTEC DW2010TD520 High-Speed PCB Connector
The product is a versatile high-speed PCB connector series designed for reliable data transmission in electronic and automation systems. It features a flexible, fine-pitch (.025 sq. in.) configuration with various insulation and plating options, including gold and tin. Constructed with durable phosphor bronze and UL-certified insulators, it operates effectively within a temperature range of -55°C to +125°C, ensuring long-term performance. Suitable for applications requiring robust, RoHS-compliant, wave-solderable connectors with precise mechanical stability, this connector offers a dependable solution for complex electronic assemblies.
SAMTEC DW2010TD520 High-Speed PCB Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, Natural Liquid Crystal Polymer, or other options
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel (50 μin. gold or tin)
- Operating Temperature Range: -55°C to +125°C (with gold plating), -55°C to +105°C (with tin plating)
- RoHS Compliant: Yes
- Wave Solderable: Yes
- Connector Series: DW, EW, ZW, HW with different insulator and plating options
- Physical Dimensions: Length varies with model, typical length around 7.87 mm to 21.08 mm, pin count varies
- Design: Non-standard, non-returnable series, with mechanical stability enhancements recommended using board spacers
- Application: High-speed data transfer, electronic and automation system connectors
- Certificate & Compliance: Meets standard electrical, RoHS, and UL certifications
Buy the Samtec Series DW: High-Speed PCB Connector 520
Enhance your electronic assemblies with Samtec’s high-speed PCB connector, designed for reliable data transfer and mechanical stability. Featuring fine 0.025 inch pitch, RoHS compliance, and various plating options, it ensures optimal performance in demanding environments. Its durable construction with phosphor bronze and UL-certified insulators offers long-term reliability, while the option for wave soldering simplifies manufacturing. Whether for automation systems, electronic modules, or complex circuitry, this connector provides a dependable, easy-to-install solution. Order now online and elevate your project quality.
Order your Samtec Series DW high-speed PCB connector today and ensure your electronic projects benefit from dependable, high-performance connectivity.
