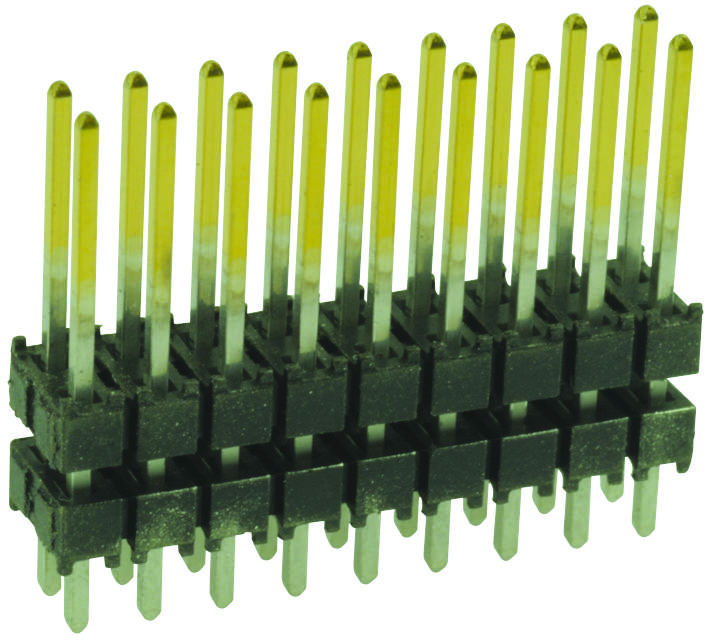

SAMTEC DW2209SD310 Board Stacking Connector
The DW2209SD310 is a flexible, high-performance board stacking connector designed for reliable electrical connections in electronic assemblies. Crafted with insulating materials like black glass-filled polyester and natural liquid crystal polymer, it offers excellent durability. Made from phosphor bronze with gold or tin plating, it operates efficiently within temperature ranges of -55°C to +125°C for gold and -55°C to +105°C for tin, complying with RoHS standards. Its compact dimensions make it ideal for space-constrained applications requiring secure, conductive contact points.
SAMTEC DW2209SD310 Board Stacking Connector Specifications:
- Insulator Material: Black Glass-filled Polyester, Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel, 50 micro-inch (1.27 μm) thickness
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Dimensions: Length varies with model, typical length approximately 19.46 mm to 21.08 mm, width approximately 2.54 mm, height approximately 7.87 mm
- Number of Pins: 8 in a row
- Design: Board stacking, flexible tail length around 2.54 mm
- Application: Electronic component interconnects, space-constrained circuit assemblies
- Certifications: RoHS Compliant
- Notes: Mechanical stability enhanced with board spacers recommended for gold-plated connectors.
