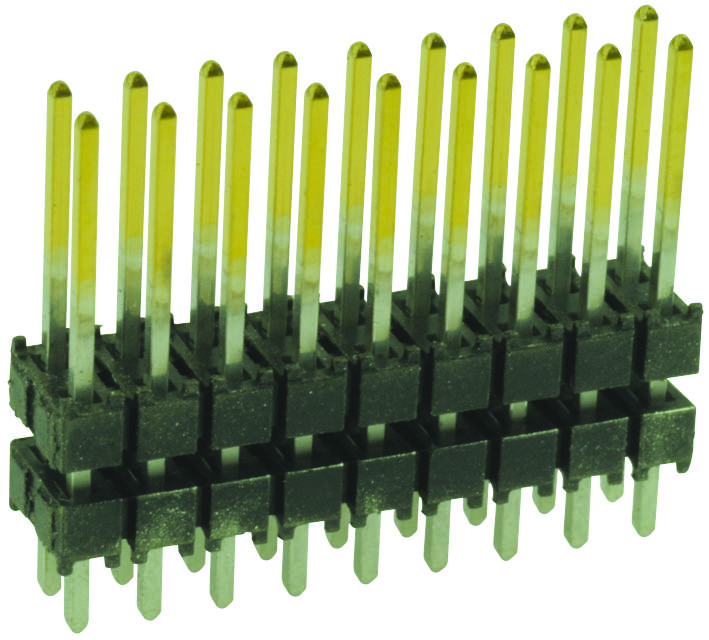

SAMTEC DW2509GD300LL Flexible Circuit Connector
The product is a high-performance flexible circuit connector designed for reliable electrical connections in electronic assemblies. Featuring a compact size with a thickness of .025 SQ E sib, it supports a maximum operating temperature of -55°C to +125°C with gold plating for enhanced corrosion resistance. Made with durable materials such as black glass-filled polyester insulator and phosphor bronze terminal material, it ensures long-term stability. Suitable for use in board stacking and interconnection applications, the connector offers RoHS compliance and is compatible with wave soldering processes, making it ideal for demanding industrial and consumer electronic devices.
SAMTEC DW2509GD300LL Flexible Circuit Connector Specifications:
- Insulator Material: Black Glass-filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over Nickel or Tin
- Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Wire Size: 0.025 SQ (square) conductor
- Connector Length: Varies with application, typical length 7.87 mm (0.310 inches)
- Compatible with wave soldering
- Other Platings: Optional for mechanical stability enhancements
- Design: Non-standard, non-returnable, with mechanical stability recommendations
- Application: Board stacking, electronic interconnects
Buy the Samtec Series DW: Flexible Circuit Connector: DW2509GD300LL
Purchase the Samtec DW2509GD300LL flexible circuit connector online today. Designed for high performance and reliable electrical connections, it features a .025 SQ E sib thickness, gold plating for enhanced corrosion resistance, and a wide temperature range from -55°C to +125°C. Made with high-quality materials including black glass-filled polyester insulator and phosphor bronze terminals, it guarantees durability and stability in challenging environments. Perfect for board stacking and interconnection applications, this connector combines versatile design with RoHS compliance, ensuring a seamless, efficient assembly process.
Get Samtec DW2509GD300LL today—built for precision, durability, and reliable electronic interconnections.
