SAMTEC DW2512SD765 Board Stacker Connector
The DW2512SD765 is a flexible, high-quality board stacker connector designed with durable materials and multi-material plating options including gold and tin. Suitable for demanding electronic and industrial applications, it supports a temperature range from -55°C to +125°C with gold plating. This non-standard connector features a 2.54 mm pitch, multiple height options, and RoHS compliance, making it ideal for reliable and robust connections in complex assemblies. Its design allows for precise mating, ensuring secure, durable electrical contact and mechanical stability in high-density environments.
SAMTEC DW2512SD765 Board Stacker Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Sn over Ni, 50 μ" (1.27 μm) Ni plating
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes, Lead-Free Solderable
- Number of Pins: 8 -T except middle, 5 sow, 100 of pins
- Pitch: 2.54 mm (0.100 inch)
- Height Options: Multiple, see specifications for detailed dimensions
- Dimensions: Length varies with option, typical length approximately 19.46mm to 21.08mm
- Certifications: RoHS Compliant, RoHS tested and certified
- Technology: Designed for high-density applications, support for mechanical stability with spacers recommended
- Additional notes: Series is non-standard, non-returnable, designed for precise electrical and mechanical connection
- Operating Temp Range: -55°C to +125°C, RoHS compliant, Lead-Free Soldering supported

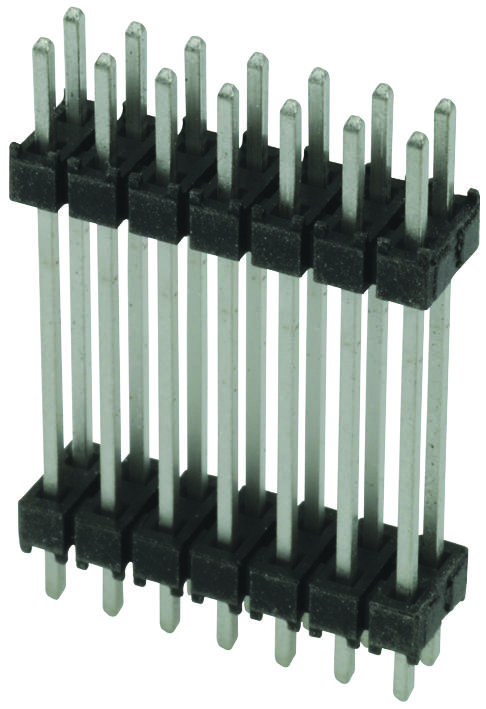

Buy the Samtec Series DW-06-13-L-D-787-118: High-Density Board Stacker Connector
Secure high-density connections with the Samtec Series DW-06-13-L-D-787-118 board stacker connector, featuring 2.54 mm pitch, multiple height options, RoHS compliance, and gold or tin plating, suitable for demanding industrial and electronic applications. Designed for durability and reliable performance, this connector supports operating temperatures from -55°C to +125°C with gold plating and -55°C to +105°C with tin. Its precision design ensures secure mating and mechanical stability, making it an essential component for complex circuitry requiring dependable, long-lasting connections.
Order your Samtec Series DW-06-13-L-D-787-118 today and ensure your electronic assemblies have reliable, high-density connections for demanding applications.
