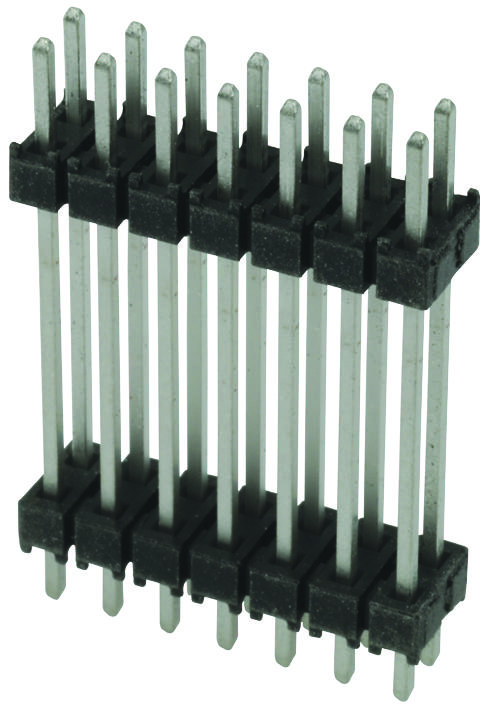

SAMTEC DW3120TD560 Board Stacking Connector
The DW3120TD560 is a high-quality, flexible board stacking connector designed for reliable electronic connections in industrial applications. Featuring a compact 2.54 mm pitch and robust terminals, it ensures secure and efficient mating with various header types. Made from durable materials like Black Glass-filled Polyester and Phosphor Bronze with gold or tin plating, it operates within -55°C to +125°C. Suitable for demanding environments, this connector offers RoHS compliance, easy solderability, and mechanical stability for complex electronic systems and high-density circuit board assemblies.
SAMTEC DW3120TD560 Board Stacking Connector Specifications:
- Pitch: 2.54 mm
- Material: Black Glass-filled Polyester, Phosphor Bronze
- Plating: Gold or Tin over Nickel
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- RoHS Compliant: Yes
- Solderable: Yes
- Terminal Material: Phosphor Bronze
- Insulator Material: Polyester, Liquid Crystal Polymer
- Operating Temp Range: -55°C to +125°C
- Connector Length: 21.08 mm for HW series, 19.46 mm for DW/ZW series
- Number of Pins: Variable, typically 8 to 20
- Application: Board stacking, electronic connections, high-density circuits
Buy the Samtec DW3120TD560 – Reliable Board Stacking Connectors for Industrial Applications
Purchase the Samtec DW3120TD560 online—engineered for reliable and secure electronic connections in industrial and high-density circuit applications. This connector offers robust material construction including glass-filled polyester insulators and phosphor bronze terminals, all plated with gold or tin for enhanced conductivity and corrosion resistance. Designed to operate between -55°C and +125°C, it ensures optimal performance even in demanding environments. Its compact size and easy solderability make it ideal for complex electronic assemblies, providing stability, durability, and compliance with RoHS standards. Order now to enhance your electronic systems with excellence.
Get Samtec DW3120TD560 today—built for precision, durability, and high-density electronic connections in industrial systems.
Frequently Asked Questions
Where can I buy SAMTEC DW3120TD560?
You can click on the BUY or RFQ button to purchase DW3120TD560 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part DW3120TD560?
You can download the DW3120TD560 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of DW3120TD560?
SAMTEC
