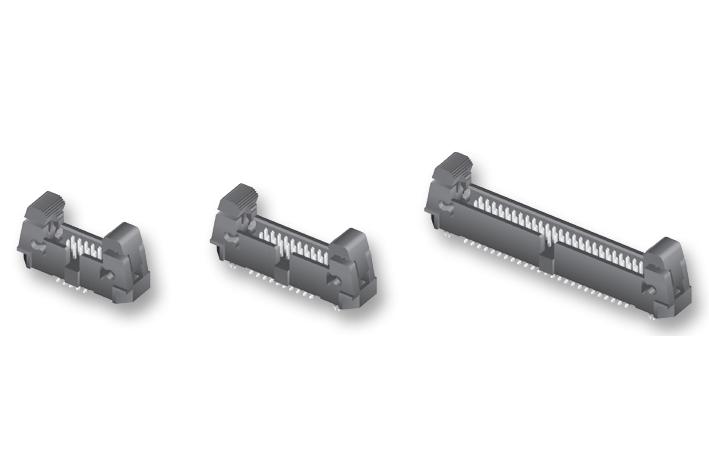

SAMTEC EHF10501FD Surface Mount Connector
The EHF10501FD is a high-reliability solderable surface-mount connector designed for precise electronic applications. Made with black Liquid Crystal Polymer insulators and phosphor bronze terminals, it supports plating options of Sn or Au over Ni. Operating within -55°C to +125°C, this connector ensures durability and RoHS compliance. It features low coplanarity of 0.004 inches and is compatible with SMT processes. Suitable for various sizes and configurations, it offers excellent electrical performance and mechanical stability for demanding industrial and electronic assemblies.
SAMTEC EHF10501FD Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50p" Ni
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.004" max
- Size: 1.27 mm (.050") pitch
- Pins per row: varies by model, e.g., 13, 17, 20, 25
- Number of pins: depending on type, e.g., 14-48 pins
- Other sizes and options available upon request
- Compatible with strain relief options and diverse configurations
- Design and specifications are subject to change without notice
Buy the Samtec EHF10501FD – Reliable Surface Mount Connector for Industrial Applications
Order the Samtec EHF10501FD online today and benefit from precision-engineered, RoHS compliant surface-mount connectors designed for durability and high-performance electronic applications. With versatile sizes and configurations, this connector ensures secure, reliable connections in demanding industrial and electronic systems. Its lead-free solderability, low coplanarity, and robust materials provide excellent electrical and mechanical stability. Make your purchase now to enhance your manufacturing process with high-quality, dependable connectors that meet the strictest standards and specifications.
Buy Samtec EHF10501FD now and experience unmatched reliability and performance in electronic packaging and industrial assemblies.
Frequently Asked Questions
Where can I buy SAMTEC EHF10501FD?
You can click on the BUY or RFQ button to purchase EHF10501FD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHF10501FD?
You can download the EHF10501FD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHF10501FD?
SAMTEC
