SAMTEC EHF12501FDRA High-Performance Board Connector
The EHF12501FDRA is a high-quality, liquid crystal polymer insulator connector designed for precise, reliable electrical connections in demanding environments. Compatible with SHF and ESHF series mates, it features phosphor bronze terminals with optional Sn or Au plating over 50 microns Ni. Operating across -55°C to +125°C, this surface-mount component offers excellent lead solderability, RoHS compliance, and high coplanarity for SMT applications. Its durable design ensures stable performance in various industrial and electronics assembly settings, making it suitable for complex electronic systems requiring dependable, high-performance interconnect solutions.
SAMTEC EHF12501FDRA High-Performance Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Sn or Au over 50 microns Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.10 mm max
- Sizes Available: No. of pins varies from 13 to 25
- Pin Pitch: 1.27 mm (0.050 inch)
- Compatibility: SHF and ESHF series mating connectors
- Design: Surface-mount interface, non-standard lengths and styles available
- Certifications: Recognitions available upon request

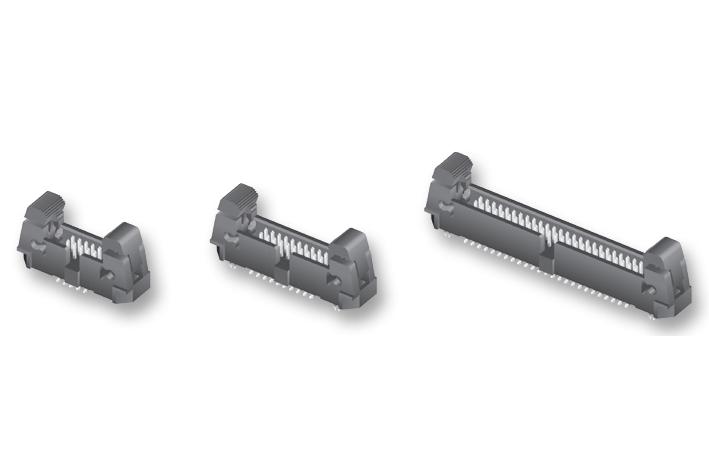

Buy the Buy Samtec Series EHF12501FDRA Part Number EHF12501FDRA Online
Purchase the Samtec EHF12501FDRA connector online today and benefit from its robust liquid crystal polymer insulator, high-temperature stability, and lead-free solderability. Designed for demanding environments, this surface-mount component features phosphor bronze terminals with optional gold or tin plating over nickel, ensuring long-lasting electrical connections. Its compatibility with multiple series and precise coplanarity make it ideal for complex industrial and electronic applications. Secure your supply of this reliable interconnect solution for enhanced device performance and durability.
Buy Samtec EHF12501FDRA connector now and experience unmatched reliability with high-temperature tolerance and RoHS compliance for your electronic needs.
Frequently Asked Questions
Where can I buy SAMTEC EHF12501FDRA?
You can click on the BUY or RFQ button to purchase EHF12501FDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHF12501FDRA?
You can download the EHF12501FDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHF12501FDRA?
SAMTEC
