SAMTEC EHT10501SD PCB Connector
The EHT10501SD is a versatile connector designed for PCB mounting, featuring a 2mm pitch and compatible with common IDC cable assemblies. Made with black liquid crystal polymer insulator and phosphor bronze terminals, it supports up to 3A at 80°C ambient. Operating temperature ranges from -55°C to +125°C, and it is RoHS compliant. It offers various mounting options including through-hole, right-angle, and surface mount, with maximum processing temperatures of 230°C for 60 seconds or 260°C for 20 seconds. Elegant and reliable, this connector is ideal for customizable electronic connections in industrial applications.
SAMTEC EHT10501SD PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 (1,27um) Ni
- Current Rating: 3A @ 80°C ambient
- Operating Temp Range: -55°C to +125°C
- RoHS Compliance: Yes
- Max Processing Temp: 230°C for 60 seconds or 260°C for 20 seconds
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10mm (0.004") max
- Number of Pins per Row: varies, compatible with 2mm IDC cables
- Mounting Options: Through-hole, Right angle, Surface mount
- Physical Dimensions: 2mm pitch, standard sizes for common cable assemblies
- Additional features: Ejector header cap to lock cable, various pin counts and configurations

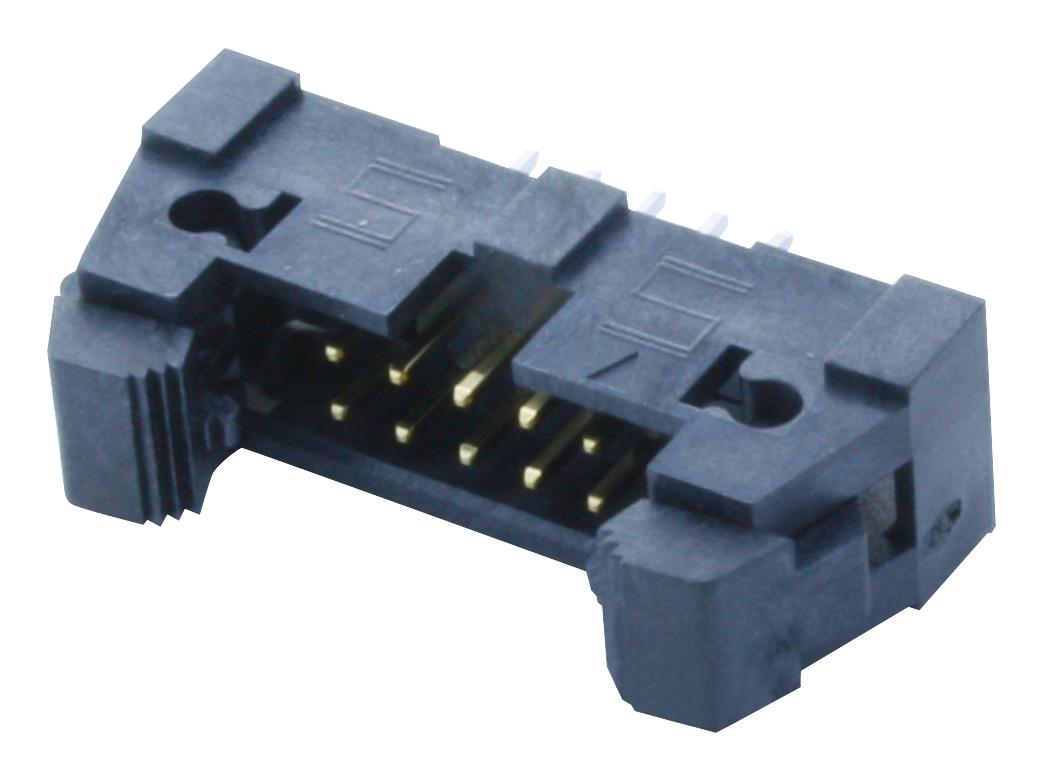

Buy the Samtec Series EHT: 2mm Pitch Connector - EHT10501SD
Purchase the Samtec Series EHT connector online today to benefit from its precise 2mm pitch, versatile mounting options, high current capacity, and excellent temperature range. This high-quality, RoHS-compliant connector is ideal for industrial PCB and cable assembly applications, offering easy soldering, compatibility with common IDC cables, and robust construction that ensures dependable performance in demanding environments. Get yours now for reliable electronic connectivity and streamline your assembly process with this professional-grade component.
Order your Samtec Series EHT10501SD connector today and ensure reliable, flexible connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC EHT10501SD?
You can click on the BUY or RFQ button to purchase EHT10501SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHT10501SD?
You can download the EHT10501SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHT10501SD?
SAMTEC
