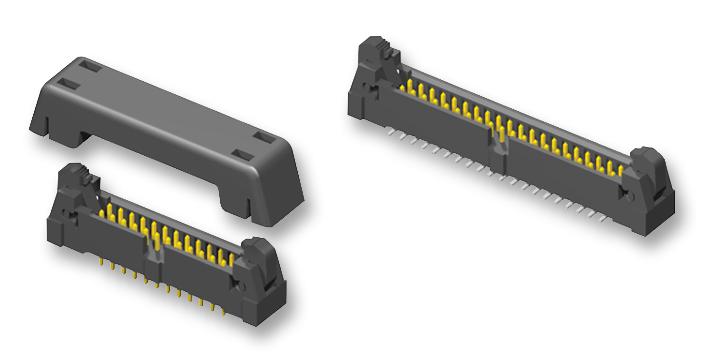

SAMTEC EHT11301SDRA Shrouded IDC Ejector Header
The SAMTEC EHT series shrouded IDC ejector headers provide a reliable and secure connection solution. These headers are designed to mate with common 2mm IDC TCSD cable assemblies and offer various configurations including straight-through-hole, right angle, and surface mount options. Constructed with a phosphor bronze terminal and a black liquid crystal polymer insulator, these headers are ideal for applications requiring robust and durable connections. They are RoHS compliant and lead-free solderable, ensuring environmental responsibility and ease of integration into modern electronic designs. Note that some lengths, styles, and options are non-standard and non-returnable.
SAMTEC EHT11301SDRA Shrouded IDC Ejector Header Specifications:
- Mates with: common 2 mm IDC TCSD cable assemblies
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze (9,65)
- Plating: .380 Sn or Au over 50µ" Ni
- Operating Temp Range: -55°C to +125°C
- Processing: No. of positions x (2,00) .0787 + (19,89) .783
- Lead–Free Solderable: Yes
- SMT Lead Coplanarity: (0,10 mm) .004" max
- Recognitions: see www.samtec.com/quality
- Available Options: –F for Through-hole, –L = Right Angle, –SM = Surface Mount, –LC = Locking Clip
- Other Platings: Contact Samtec
- Gold Plating: = 10µ" (0,25 µm) Gold on post, Matte Tin on tail
- No. of positions x (2,00) .0787: (2,00) (2,54)
- Pick & Place Pad: (–SM only)
- Tape & Reel: (–SM only)
- Strain Relief: –SR, –RA
Buy the EHT-113-01-S-D-RA SAMTEC Shrouded IDC Ejector Header | myMectronic
Securely purchase the SAMTEC EHT-113-01-S-D-RA shrouded IDC ejector header online today.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC EHT11301SDRA?
You can click on the BUY or RFQ button to purchase EHT11301SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHT11301SDRA?
You can download the EHT11301SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHT11301SDRA?
SAMTEC
