SAMTEC EHT11301SDSM IDC Connector
The EHT-112-01-L-D is a 2 mm pitch, surface-mount or through-hole IDC connector. Made from black liquid crystal polymer with phosphor bronze contacts, it features tin or gold plating over nickel. Operating temperatures range from -55°C to +125°C. Suitable for PCB applications, it supports multiple pin configurations, coplanarity of 0.004 inches, and complies with RoHS standards. This connector is ideal for connecting IDC cable assemblies with reliable mating, high thermal stability, and lead-free solderability across various electronic testing and automation systems.
SAMTEC EHT11301SDSM IDC Connector Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Material: Liquid Crystal Polymer insulator, Phosphor Bronze contacts
- Plating: Sn or Au over Ni (50 micrometers or 1.27 micrometers)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, SMT Lead Coplanarity: 0.004 inches
- Contact Arrangement: 05, 08, 10, 12, 13, 15, 17, 20, 22, 25 positions
- Mounting Style: Through-hole, right angle, or surface mount
- Cable Compatibility: Common 2 mm IDC cable assemblies
- Additional Options: Different platings, lengths, and styles available upon request

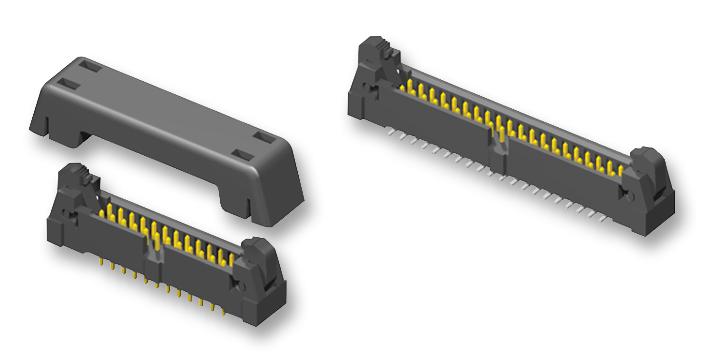

Buy the Samtec Series EHT 2 mm Pitch IDC Connector: EHT-112-01-L-D
Enhance your electronic assembly with the Samtec Series EHT IDC connector featuring a 2 mm pitch for robust cable and PCB connections. Designed from high-quality liquid crystal polymer and phosphor bronze contacts, it supports a wide temperature range from -55°C to +125°C and complies with RoHS standards. Whether for through-hole, surface mount, or right-angle applications, this connector offers excellent coplanarity, solderability, and versatile pin configurations. Order online today for dependable performance in automation, testing, and industrial electronics.
Order your Samtec Series EHT 112-01-L-D IDC connector today and ensure reliable, high-quality connectivity for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC EHT11301SDSM?
You can click on the BUY or RFQ button to purchase EHT11301SDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHT11301SDSM?
You can download the EHT11301SDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHT11301SDSM?
SAMTEC
