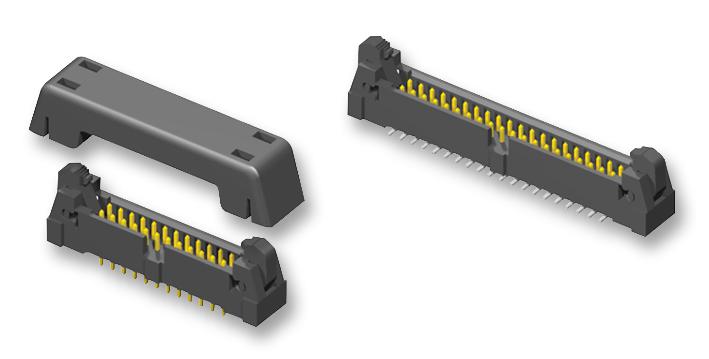

SAMTEC EHT11701SDRA Shrouded Header
The EHT112 series is a high-quality, 2 mm pitch shrouded header designed for PCB integration and cable assembly applications. Made from black liquid crystal polymer insulator material and phosphor bronze contacts, it offers reliable electrical connectivity and durability. The connector supports a temperature range of -55°C to +125°C, is RoHS compliant, and is suitable for lead-free soldering. It features multiple mounting options including through-hole, right angle, and surface mount, with optional plating choices like tin or gold over nickel. Ideal for industrial, automation, and electronics projects requiring secure, high-temperature connections.
SAMTEC EHT11701SDRA Shrouded Header Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni, optional surface plating
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliance: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: Max 0.004 inches (0.10 mm)
- Number of Positions: 5, 8, 10, 12, 13, 15, 17, 20, 22, 25
- Mounting Options: Through-hole, right angle, surface mount
- Tail Length Options: Up to 650 mm (25.6 inches)
- Contact Plating Options: Tin or Gold over Nickel
- Design: Compatible with common 2 mm IDC cable assemblies
- Certifications: RoHS compliant
Buy the Buy Samtec EHT112 Series Part Number EHT11701SDRA Online
Purchase the Samtec EHT112 Series shrouded header online for secure, high-performance PCB connections. Designed for versatility, it supports various mounting options including through-hole, right angle, and surface mount, with optional plating like tin or gold over nickel. Made from durable liquid crystal polymer and phosphor bronze contacts, it withstands temperature ranges from -55°C to +125°C, making it ideal for demanding industrial environments. Ensure your electronic assemblies are reliable, RoHS compliant, and easy to solder with this high-quality connector.
Get Samtec EHT112 Series connector today—built for reliable connections in industrial and electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC EHT11701SDRA?
You can click on the BUY or RFQ button to purchase EHT11701SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHT11701SDRA?
You can download the EHT11701SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHT11701SDRA?
SAMTEC
