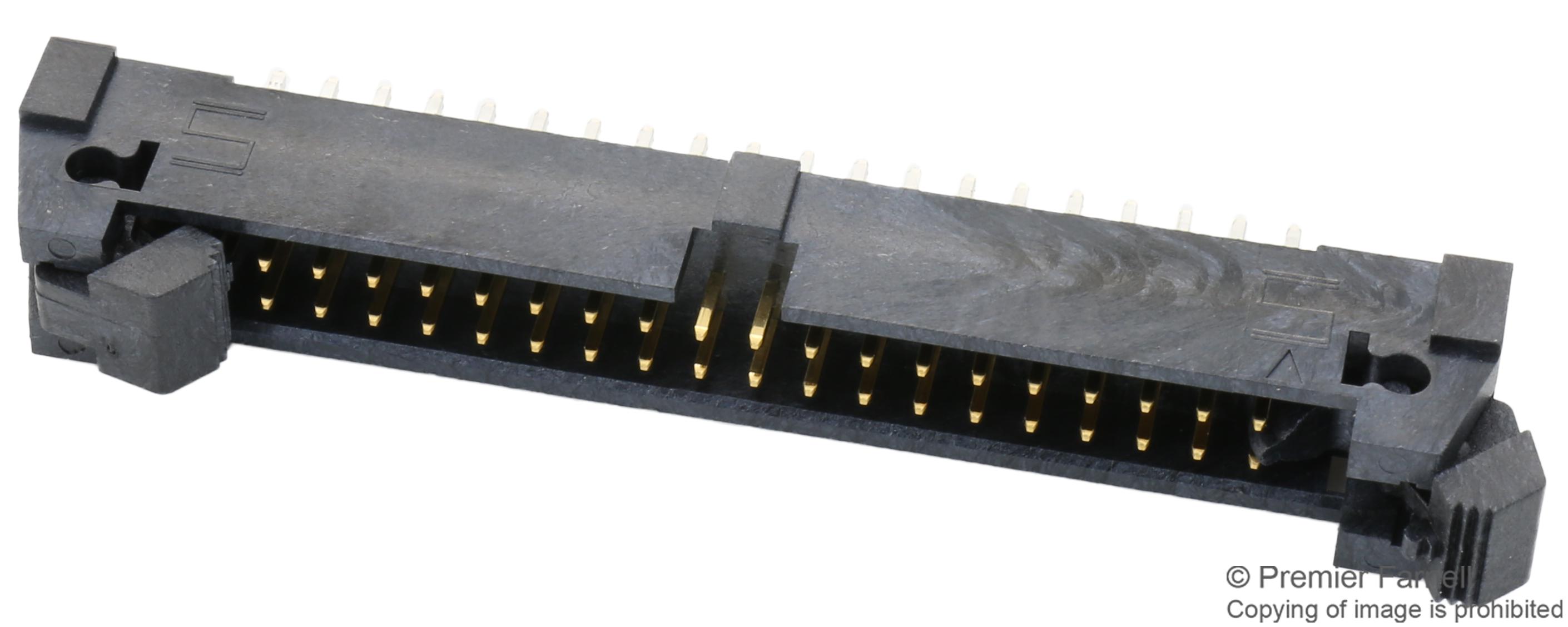

SAMTEC EHT12001SD IDC Connector
The EHT-120-01-F-D-SM-LC is a high-performance shrouded IDC connector with black liquid crystal polymer insulator and phosphor bronze terminals. It is RoHS compliant, lead-free, and suitable for operating temperatures ranging from -55°C to +125°C. This connector supports multiple mounting options including surface mount, through-hole, and right-angle configurations, featuring 2.00 mm pitch, gold or tin plating, and various pin counts from 5 to 25 per row. Designed for reliable PCB and cable assembly connections, it ensures durability and compatibility with 2 mm IDC cables for industrial and electronic applications.
SAMTEC EHT12001SD IDC Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ
- Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm
- Pitch: 2.00 mm (0.0787 inches)
- Pin counts: 5, 8, 10, 12, 13, 15, 17, 20, 22, 25 per row
- Mounting styles: Through-hole, right-angle, surface mount
- Tail Length: Approximately 1.27 mm (0.050 inches)
- Connector width: 9.65 mm (0.380 inches)
- Surface Finish: Matte Tin or Gold on post
- Application: Industrial electronic assemblies and PCB connections
Buy the Samtec Series EHT: IDC Connector - EHT-120-01-F-D-SM-LC
Purchase the Samtec IDC Connector online today to ensure reliable, high-quality PCB-to-cable connections. Designed with high-temperature tolerance and RoHS compliance, this connector features multiple mounting options including surface mount and through-hole, with several pin configurations. Constructed from durable materials like Phosphor Bronze and liquid crystal polymer, it guarantees long-lasting performance in industrial applications. Easy to solder and assemble, this connector is ideal for modern electronic assemblies requiring precise connectivity and robust design. Order now for fast and secure delivery.
Get Samtec EHT-120-01-F-D-SM-LC today—built for reliable PCB and cable connections with durable, high-temperature performance.
