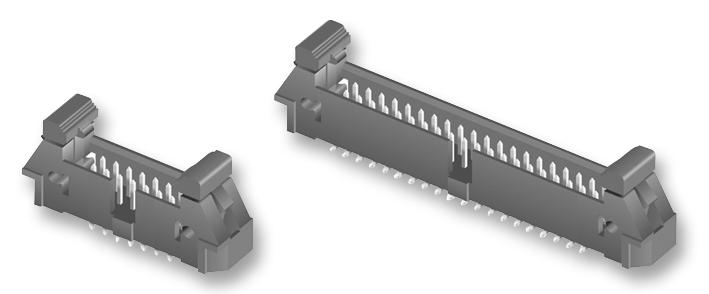

SAMTEC EJH11501SDTH IDC Ejector Header
The shrouded IDC ejector headers series features a polarizing surface mount or through-hole design with a 2.54 mm pitch. Constructed with black or natural LCP insulators and phosphor bronze terminals plated with Sn or Au over 50 microns Ni. They operate from -55°C to +125°C and are RoHS compliant, suitable for lead-free soldering. The headers include optional gold flash plating, various sizes, and configurations for easy PCB integration. Ideal for connectors requiring precise mating and reliable electrical connection in industrial applications.
SAMTEC EJH11501SDTH IDC Ejector Header Specifications:
- Pitch: 2.54 mm (0.100 inch)
- Insulator Material: Black or Natural LCP
- Terminal Material: Phosphor Bronze
- Plating Options: Sn or Au over 50u" Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: Max 0.10 mm (0.004 inch)
- Contact Sizes: No. of positions varies from 5 to 20
- Surface Mount or Through-Hole Design
- Polarized for proper orientation
- Optional gold flash plating on post
- Compatible with IDSD and HCSD receptacles
- Accepts micro-sized pins, suitable for industrial contactors
- Manufactured to meet industry recognition standards
Buy the Samtec Series EJH IDC Ejector Headers: EJH11501SDTH
Purchase the Samtec IDC Ejector Header series online today and enjoy robust connection reliability with precise polarization features. These connectors are RoHS compliant, suitable for lead-free soldering, and designed with a 2.54 mm pitch for versatile PCB applications. Available in surface mount and through-hole configurations, with optional gold or tin plating for enhanced conductivity and corrosion resistance. Ideal for industrial electronics, automation, and high-reliability electronic systems, ensuring durable and consistent performance across various operating environments.
Buy Samtec EJH11501SDTH now and experience unmatched reliability and performance in connector solutions for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC EJH11501SDTH?
You can click on the BUY or RFQ button to purchase EJH11501SDTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EJH11501SDTH?
You can download the EJH11501SDTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EJH11501SDTH?
SAMTEC
