SAMTEC EJH12501SDTH IDC Ejector Headers
The shrouded IDC ejector headers are surface-mount, polarized connectors designed for reliable PCB connections in industrial and electronic applications. Made with black or natural LCP insulators and phosphor bronze terminals plated with Sn or Au over Ni, they operate within -55°C to +125°C. Available in various sizes and configurations, these connectors feature a quick eject mechanism, coplanarity tolerance of 0.10 mm, and compatibility with standard 2.54 mm pitch systems. RoHS compliant, they are solderable, lead-free, and suitable for high-density mounting of electronic components.
SAMTEC EJH12501SDTH IDC Ejector Headers Specifications:
- Insulator Material: Black or Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50μ" Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable
- Mounting Style: Surface Mount or Through-Hole
- Pitch: 2.54 mm
- Coplanarity: 0.10 mm maximum
- Number of Positions: Varies (e.g., 5, 8, 10, 13, 20)
- Available Platings: Gold flash on post, standard tin or gold plated
- Polarized, with optional keyed versions for correct mating
- Compatibility: Mates with IDC headers, PCB applications
- Design Features: Ejector mechanism for easy insertion/removal, high-current capacity

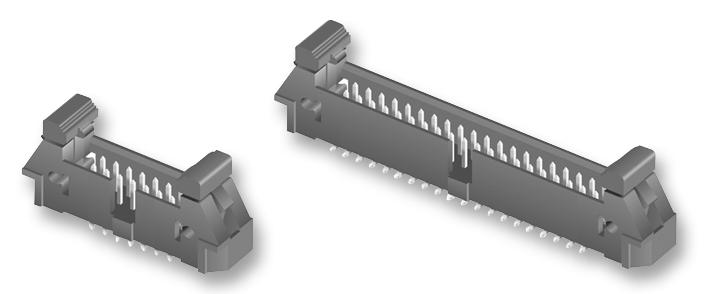

Buy the Samtec EJH– Reliable IDC Ejector Headers for Industrial Applications
Purchase Samtec IDC Ejector Headers online now for premium quality and reliable PCB connection solutions. Designed with polarization and quick eject mechanism, these headers ensure easy installation and secure mating. Suitable for high-density, industrial electronic applications, they feature RoHS compliance and lead-free processing. The connectors support a variety of sizes and configurations, including surface mount and through-hole styles, with optional gold plating for enhanced performance. Order today to ensure dependable connections in your electronic assembly and manufacturing processes.
Get Samtec EJH-12501SDTH today—built for high-density PCB connections with polarized, shrouded IDC headers for industrial reliability.
Frequently Asked Questions
Where can I buy SAMTEC EJH12501SDTH?
You can click on the BUY or RFQ button to purchase EJH12501SDTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EJH12501SDTH?
You can download the EJH12501SDTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EJH12501SDTH?
SAMTEC
