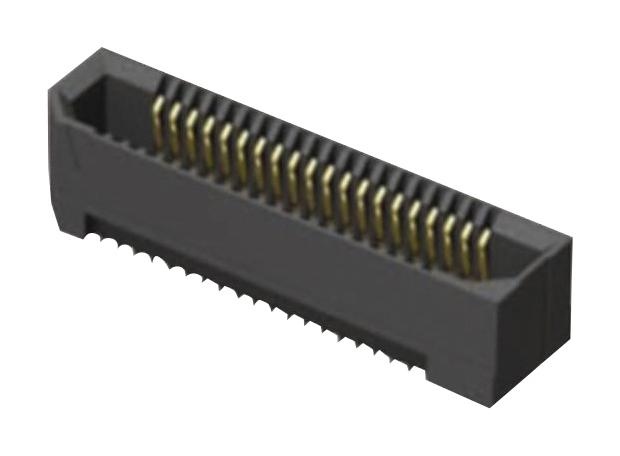

SAMTEC ERF805001LDRATR High-Speed Socket
The ERF8-020-05.0-S-DV-TR is a robust high-speed socket designed for high-frequency signal compatibility and extended lifespan in PCB connections. It features a rugged metal design with a black LCP insulator, BeCu contacts rated for 2.2 A per pin, and supports signal frequencies up to 24 Gbps. Suitable for demanding electronic and communication applications, this socket ensures reliable, high-performance connections with excellent insertion loss characteristics, and is compatible with various stack heights for flexible assembly options in high-speed PCB layouts.
SAMTEC ERF805001LDRATR High-Speed Socket Specifications:
- Insulator Material: Black LCP
- Contact Material: BeCu
- Current Rating: 2.2 A per pin
- Voltage Rating: 200 VAC max
- Operating Temp Range: -55°C to +125°C
- Rated Frequency: Up to 24 Gbps
- Insertion Loss: Based on PCB effects, certified performance data available
- Stack Heights: 7mm, 10mm, 12mm, 15mm, 16mm, and others
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0,10 mm to 0,15 mm
- Certifications: Certified for high-speed signal integrity, RoHS compliant
- Environmental: Suitable for demanding digital and RF applications
- Physical Dimensions: Customizable based on no. of positions and stack height
Buy the Buy Samtec ERF8-020-05.0-S-DV-TR Part Number ERF8-020-05.0-S-DV-TR Online
Secure your high-speed PCB connection with the Samtec ERF8-020-05.0-S-DV-TR socket, engineered for signal integrity up to 24 Gbps, rated for 2.2 A per pin. Featuring a durable black LCP insulator and BeCu contacts, this socket supports flexible stack heights including 7mm and 15mm options, making it ideal for demanding digital and RF applications. Easy to solder, RoHS compliant, and suitable for high-reliability environments, it's the perfect choice to enhance your electronic system's performance and longevity. Purchase online today for fast delivery and expert support.
Order your Samtec ERF8-020-05.0-S-DV-TR socket today and ensure high-speed reliable PCB connections tailored for your advanced electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC ERF805001LDRATR?
You can click on the BUY or RFQ button to purchase ERF805001LDRATR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERF805001LDRATR?
You can download the ERF805001LDRATR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERF805001LDRATR?
SAMTEC
