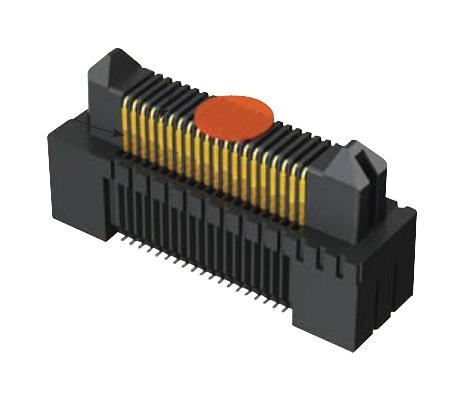

SAMTEC ERM5075050LDVKTR High-Speed Header
The ERM5 series is a rugged, high-speed header connector with Edge Rate® contacts, designed for reliable high-density electronic connections. It features a black LCP insulator, phosphor bronze or BeCu terminals with optional gold or tin plating. Operating over -55°C to +125°C, it supports current ratings up to 1.6 A per pin and voltage ratings suitable for high-performance PCB applications. Its robust design includes friction lock and weld tab options, making it ideal for mission-critical electronic and industrial equipment requiring secure, high-speed data transmission.
SAMTEC ERM5075050LDVKTR High-Speed Header Specifications:
- Insulator Material: Black LCP
- Terminal Material: Phosphor Bronze or BeCu
- Plating: Au or Sn over
- Current Rating: 1.6 A per pin
- Operating Temp Range: -55 °C to +125 °C
- Voltage Rating: Suitable for high-performance electronic connections
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Options: Friction Lock, Weld Tab
- Mated stack height options: 7mm, 9mm, 10mm, 11mm, 12mm
Buy the Buy Samtec ERM5 Series High-Speed Header Part Number ERM5075050LDVKTR Online
Order the Samtec ERM5 Series High-Speed Header online today to ensure your electronic systems benefit from reliable high-speed connections. Featuring Edge Rate® contacts, durable LCP insulator, and options like friction lock and weld tab, this connector is perfect for industrial, communication, and computing equipment. Its operating temperature range from -55°C to +125°C and high current ratings make it suitable for demanding environments. Experience quick delivery and secure online purchase to keep your projects on schedule with this rugged, high-performance header connector.
Get Samtec ERM5 Series connector today—designed for high-speed data transfer and durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC ERM5075050LDVKTR?
You can click on the BUY or RFQ button to purchase ERM5075050LDVKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERM5075050LDVKTR?
You can download the ERM5075050LDVKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERM5075050LDVKTR?
SAMTEC
