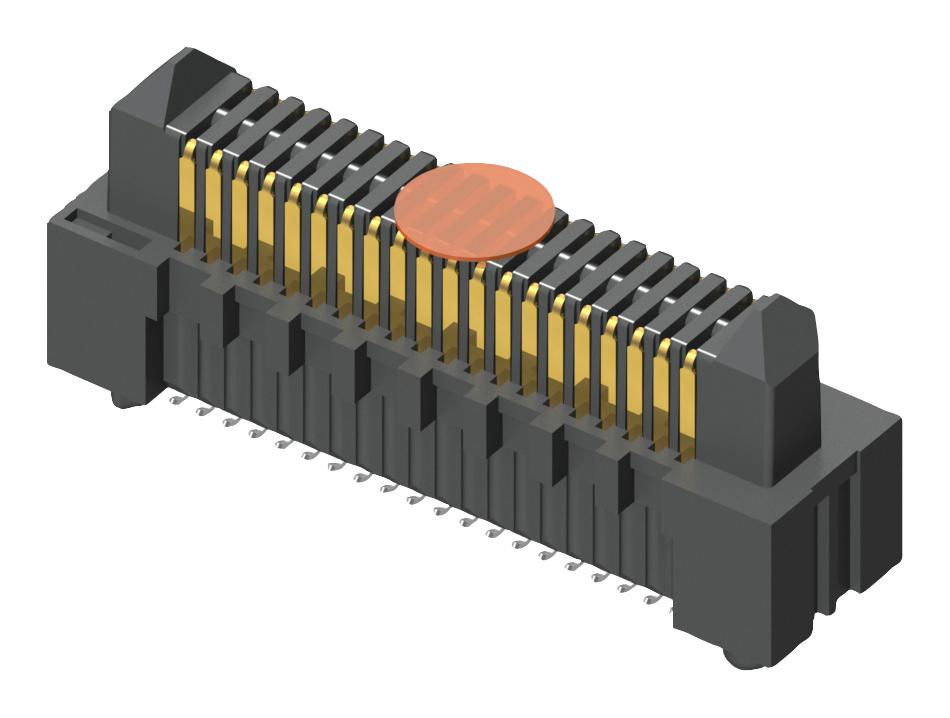

SAMTEC ERM8020050SDVKTR High-Speed Header
The rugged high-speed header is designed for micro pitch applications with a pitch of 0.80 mm, offering reliable high-speed data and power connections. Constructed with black LCP insulator material and phosphor bronze terminal material, it features gold and Sn over Ni plating for extended durability. Capable of handling current ratings of 2.2 A per pin and operating within a temperature range of -55°C to +125°C, it supports up to 225 VAC / 318 VDC voltage ratings. Ideal for electronics requiring precision, high-speed interconnects, and RoHS compliance, this header is compatible with SMT lead coplanarity and various stack heights for versatile integration.
SAMTEC ERM8020050SDVKTR High-Speed Header Specifications:
- Pitch: 0.80 mm
- Insulator Material: Black LCP
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ
- Ni
- Current Rating: 2.2 A per pin
- Operating Temp: -55°C to +125°C
- Voltage Ratings: 225 VAC / 318 VDC
- RoHS Compliant
- Mated Height: 7.00 to 18.00 mm, various options
- Mating Compatibility: Bead-Free Solderable, flexible SI performance
- Lead Coplanarity: Max 0.004" (0.10 mm)
- Positions Per Row: 2 to 50 positions
- Supported Stack Height: 5.97 to 17.00 mm
- Design: Micro pitch, high-speed data and power connection
- Certifications: RoHS compliant
- Contact Material: Phosphor Bronze
Buy the Samtec ERM8020050SDVKTR – Reliable High-Speed Header for Micro Pitch Connections
Discover the reliable and durable high-speed header designed for micro pitch applications, featuring robust construction with gold and Sn over Ni plating. Supporting up to 2.2 A per pin and operating over a wide temperature range, it ensures dependable power and signal connections. With RoHS compliance and compatibility with SMT lead coplanarity, this header provides versatile integration for demanding electronic systems. Easily order from our online store and enhance your project's performance with trusted quality and precision engineering.
Get Samtec ERM8 high-speed headers today—built for precision, durability, and micro pitch applications in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC ERM8020050SDVKTR?
You can click on the BUY or RFQ button to purchase ERM8020050SDVKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERM8020050SDVKTR?
You can download the ERM8020050SDVKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERM8020050SDVKTR?
SAMTEC
