SAMTEC ERM8025050SDVTR High-Speed Header
The rugged high-speed header is designed for board-to-board connections in demanding environments, offering extended life, high mating cycles, and ROHS compliance. Made with black LCP insulator material and phosphor bronze contacts with gold and nickel plating, it supports a voltage rating of 225 VAC and 318 VDC, with an operating temperature range from -55°C to +125°C. It features SMT lead coplanarity of 0.10 mm to 0.15 mm, supporting various positions per row, making it suitable for high-density, reliable electronic applications. This connector ensures durability and excellent electrical performance in industrial and computing systems.
SAMTEC ERM8025050SDVTR High-Speed Header Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze with Au and Ni plating
- Voltage Rating: 225 VAC / 318 VDC
- Operating Temp Range: -55°C to +125°C
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Maximum SMT Lead Coplanarity: 0.10 mm to 0.15 mm
- Number of Positions per Row: multiple options (e.g., 5, 7, 9, 10, etc.)
- Mated Height: 50 mm (nominal)
- Dimensions: Supports lengths up to 12.00 mm with various options
- Certification: Recognized for quality (see www.samtec.com/quality)

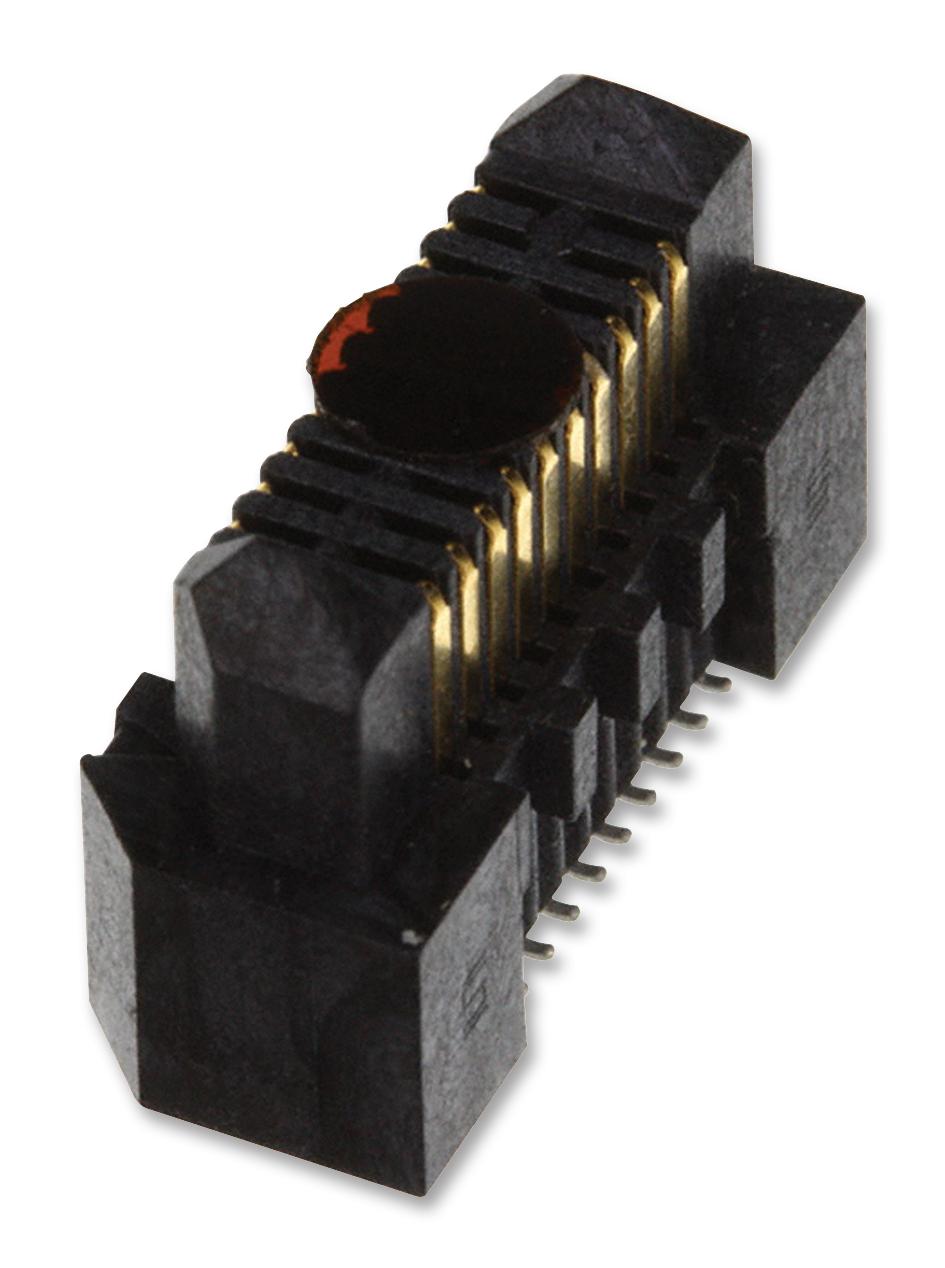

Buy the Buy Samtec ERM8-013-05.0-S-DV-DS-L-TR Part Number ERM8-013-05.0-S-DV-DS-L-TR Online
Purchase the high-speed rugged header online today to ensure reliable, high-performance connections in demanding industrial and electronic systems. This connector offers high mating cycle durability, RoHS compliance, and excellent electrical properties. Designed with black LCP insulator and phosphor bronze contacts, it supports voltages up to 318 VDC and operates from -55°C to +125°C. Ideal for high-density, high-speed applications, this connector guarantees durability, precision, and a seamless integration into your electronic assemblies, maximizing operational efficiency and longevity.
Get Samtec ERM8-013-05.0-S-DV-DS-L-TR today—built for durability and high-speed performance in industrial electronics and high-density applications.
Frequently Asked Questions
Where can I buy SAMTEC ERM8025050SDVTR?
You can click on the BUY or RFQ button to purchase ERM8025050SDVTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERM8025050SDVTR?
You can download the ERM8025050SDVTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERM8025050SDVTR?
SAMTEC
