SAMTEC ERM8050020LDVTR High-Speed Header
The Rugged High-Speed Header is designed for robust PCB connections, offering extended life and high mating durability. Made with black LCP insulators and phosphor bronze contacts, it supports multiple positions per row with optional gold or tin plating for enhanced corrosion resistance. It operates over a temperature range of -55°C to +125°C, with a voltage rating of 225 VAC / 318 VDC. This SMT-compatible connector is RoHS compliant and suitable for high-speed digital applications like PCI Express and GbE interfaces.
SAMTEC ERM8050020LDVTR High-Speed Header Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 225 VAC / 318 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Number of Positions per Row: varies (e.g., 7 to 16)
- Plating Options: Matte Tin, Gold on contact
- Pin Pitch: 0.80 mm (.0315 inches)
- Mated Height: Nominal, depends on PCB and design
- Compatibility: SMT, high-speed digital, PCI Express, GbE
- Certifications: RoHS, technical specifications subject to change

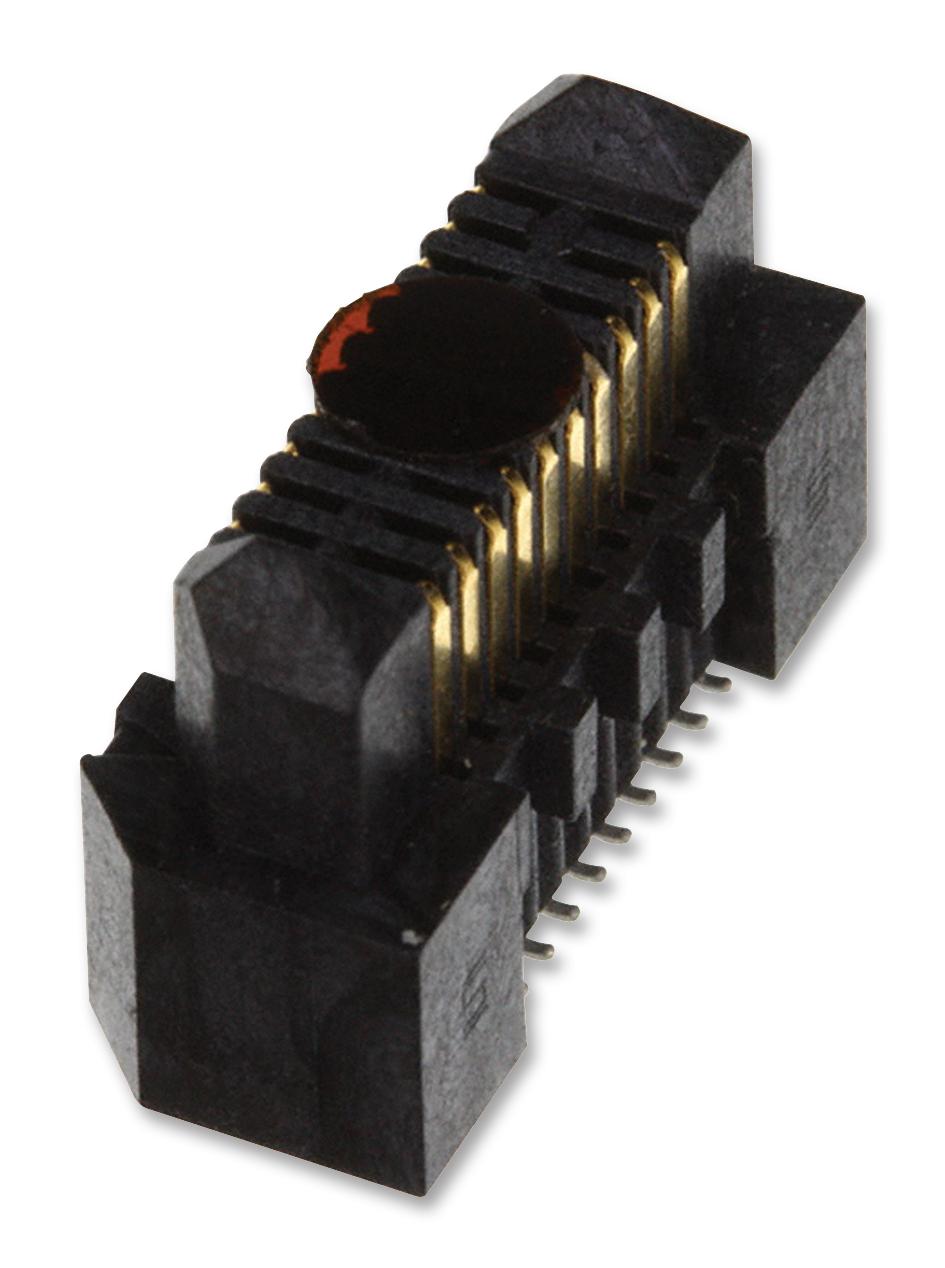

Buy the Buy Samtec ERM8-030-02.0-S-DV-TR Online
Purchase the Samtec High-Speed HeaderER onlineto enhance your PC board assembly with a reliable, durable connector designed for high-speed digital signals. This rugged, RoHS-compliant SMT header features a 0.80 mm pitch, multiple contact options, and gold or tin plating for excellent corrosion resistance. With operating temperature up to +125°C and voltage ratings of 225 VAC, it is suitable for PCI Express, GbE, and other demanding interfaces. Order now for superior connectivity and long-term performance.
Get Samtec ERM8-030-02.0-S-DV-TR today—built for high-speed digital applications and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC ERM8050020LDVTR?
You can click on the BUY or RFQ button to purchase ERM8050020LDVTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERM8050020LDVTR?
You can download the ERM8050020LDVTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERM8050020LDVTR?
SAMTEC
