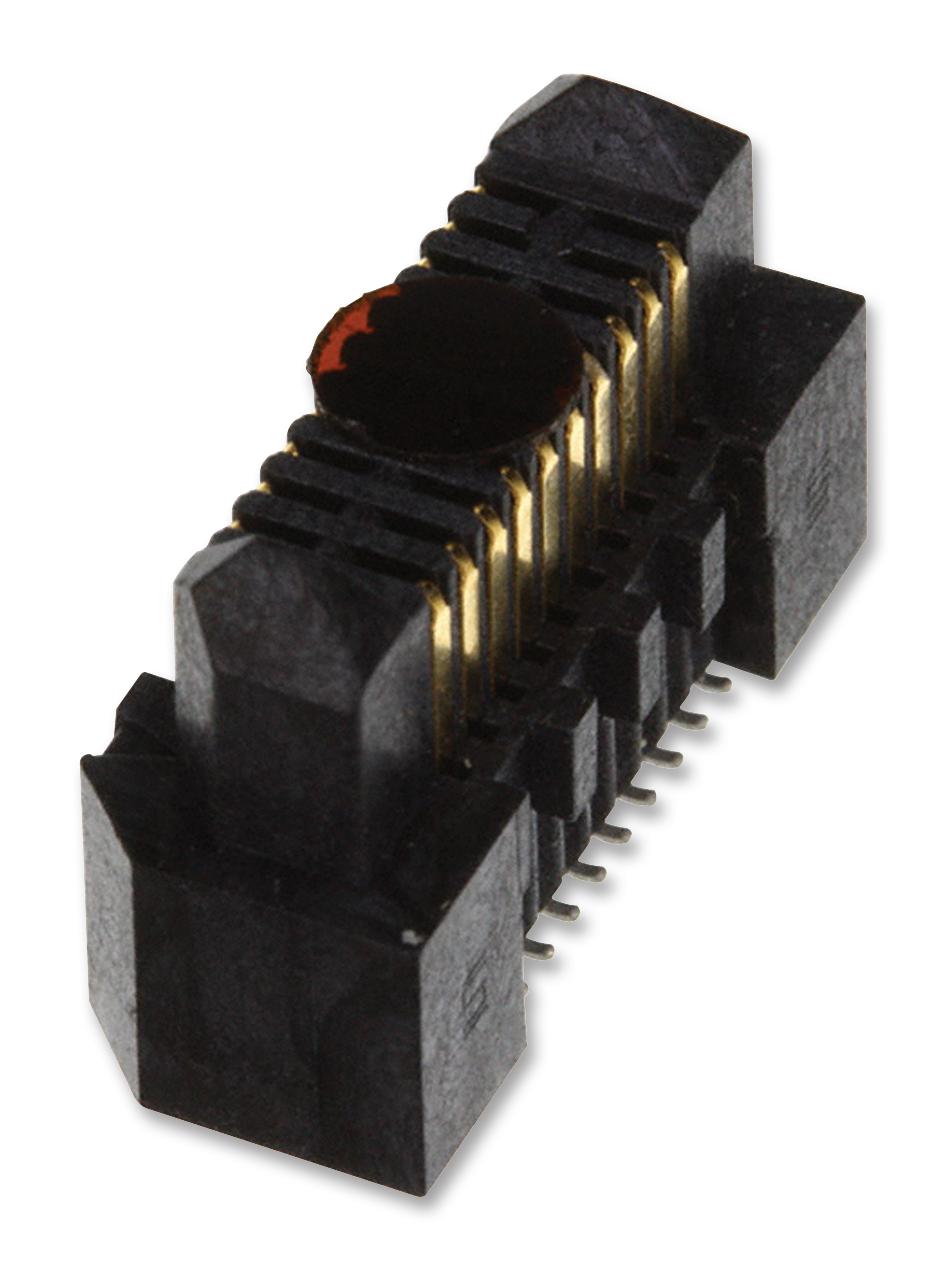

SAMTEC ERM8075050SDVKTR High-Speed Connector
This rugged high-speed header is designed for micro pitch applications, featuring gold-plated terminals and black LCP insulators. It supports hot swap operation, with a current rating of 2.2A per pin and a voltage rating of 225 VAC/318 VDC. The connector offers high-speed channel performance with flexible shipping configurations, compatible with bead-free soldering, SMT lead coplanarity of 0.10 mm, and various positions for different protocols including 100 GbE and PCI Express. It is suitable for demanding electronic and communication systems requiring reliable, high-speed data transmission and rugged durability.
SAMTEC ERM8075050SDVKTR High-Speed Connector Specifications:
- Insulator Material: Black LCP with gold contacts
- Terminal Material: Bronze with Au or Sn over Ni plating
- Current Rating: 2.2A per pin (2 pins powered)
- Voltage Rating: 225 VAC/318 VDC
- Operating Temp Range: -55°C to +125°C
- External Dimensions: Length options from 4.61" to 8.61" depending on style and position
- High-speed channel performance suitable for 100 GbE and PCI Express protocols
- Compatible with bead-free soldering and SMT processes
- Coplanarity: 0.10 mm maximum
- Contact Materials: Gold-plated bronze, ensuring corrosion resistance and reliable conductivity
- Number of Positions: from 5 up to 100 depending on configuration
- Design features include rugged construction, high-speed signal support, and multiple protocol options.
Buy the Buy Samtec ERM8 Series High-Speed Header Part Number ERM8075050SDVKTR Online
Enhance your electronic projects with the durable and high-performance Samtec high-speed connector. Designed for micro pitch applications, it supports protocols like 100 GbE and PCI Express, offering excellent signal integrity and rugged construction. Compatible with bead-free soldering and SMT processes, this connector features gold-plated contacts for corrosion resistance. With a current rating of 2.2A per pin and voltage rating of 225 VAC/318 VDC, it ensures reliable operation across a wide temperature range, making it ideal for demanding industrial and communication systems. Buy online now for quick delivery and quality assurance.
Order your Samtec ERM8 Series ERM8075050SDVKTR rugged high-speed header today and ensure your electronic systems have reliable, high-performance data connectivity.
Frequently Asked Questions
Where can I buy SAMTEC ERM8075050SDVKTR?
You can click on the BUY or RFQ button to purchase ERM8075050SDVKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERM8075050SDVKTR?
You can download the ERM8075050SDVKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERM8075050SDVKTR?
SAMTEC
