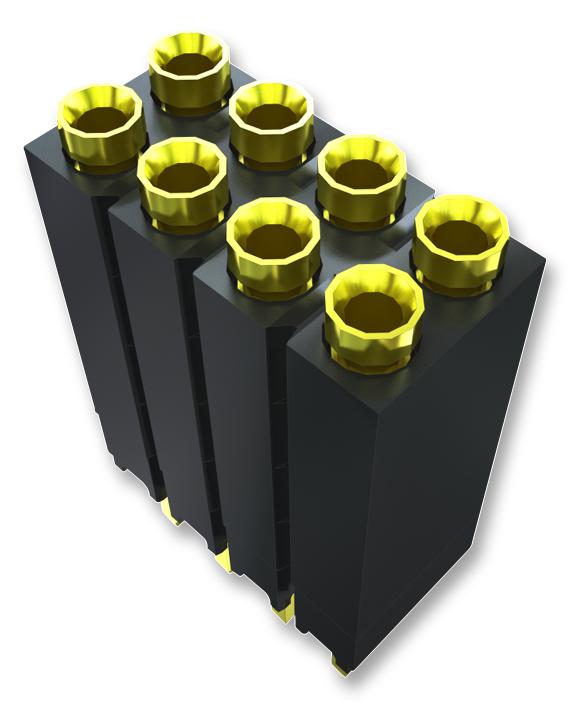

SAMTEC ESD136T04 Precision Socket Strip
The ESD136T04 is a precision machined socket strip designed for high-performance electronic applications. Constructed with black G.F. Polyester insulators and brass shells, it features gold and tin-plated contacts for reliable electrical connections. Operating within a temperature range of -55°C to +125°C, it supports lead sizes from 0.38 mm to 0.56 mm, ensuring compatibility with most IC leads. The socket assembly offers low insertion and withdrawal forces for easy installation and removal, making it ideal for digital and analog circuit testing, automation, and maintenance tasks. It complies with RoHS standards for environmental safety.
SAMTEC ESD136T04 Precision Socket Strip Specifications:
- Insulator Material: Black G.F. Polyester
- Shell: Brass except Style 54
- Plating: Au over 50p! (1.27 μm) Ni or Sn over 50p! (1.27 μm) Ni
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Lead Size Range: 0.38 mm to 0.56 mm (0.015" to 0.022" DIA)
- Insertion Force: Standard=9 oz (2.50 N), Max=16 oz (4.45 N); Low Insertion Force=2.5 oz (0.70 N), Max=5.5 oz (1.53 N)
- Withdrawal Force: Standard=2.5 oz (0.70 N), Min=1.5 oz (0.42 N); Low Insertion Force=2.0 oz (0.56 N), Min=0.35 oz (0.10 N)
- Insertion Depth: 2.41 mm (.095") to 3.68 mm (.145")
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Compatible with multiple styles and lengths, with optional locking leads in end positions for secure connections
