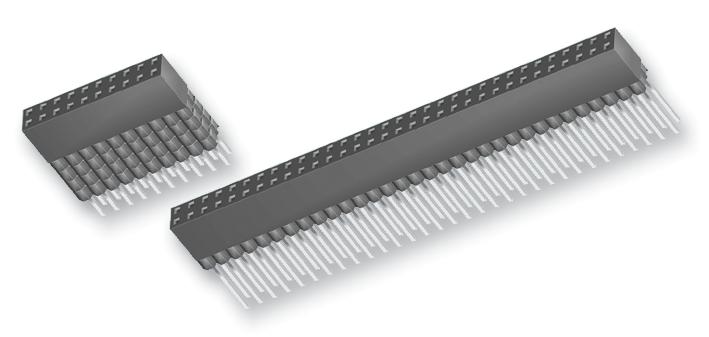

SAMTEC ESQ10214GD PCB Socket Strip
The ESQ series from Samtec features PCB through-hole socket strips designed specifically for PC/104 applications. These elevated socket connectors support single, dual, or triple row configurations with a 2.54 mm pitch and vertical orientation. Crafted with a black glass-filled polyester insulator, they include self-nesting designs with standard and low insertion force contacts, compatible with various Samtec series connectors. Operating from -55°C to 125°C, their phosphor bronze contacts are gold-plated in 20µ”, ensuring reliable electrical performance. Conforming to UL and CSA standards, these connectors are ideal for industrial, automation, and embedded system applications.
SAMTEC ESQ10214GD PCB Socket Strip Specifications:
- Pitch: 2.54 mm
- Contact Material: Phosphor Bronze
- Contact Finish: 20µ” gold plating
- Insulator Material: Black Glass Filled Polyester
- Operating Temperature Range: -55°C to 125°C
- Configuration: Single, dual, triple row options
- Number of Contacts per Row: 1 to 36
- Tail Size: 0.025 inch (0.635 mm) square
- Supported Series: TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH, HTSS
- Standards: UL E111594, CSA 090871
- Durability: Max Cycles: 457 to 1887, depending on contact type
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec ESQ10214GD – Reliable PCB Socket for Industrial Applications
Purchase the Samtec ESQ series PCB socket strips online today to ensure reliable connections in your PC/104 applications. These elevated socket connectors support multiple configurations with low and standard insertion force options, making them suitable for industrial, automation, and embedded system projects. Crafted with durable phosphor bronze contacts gold-plated at 20µ” and housed in a black glass-filled polyester insulator, they operate efficiently from -55°C to 125°C. Easy to install and RoHS compliant, these connectors guarantee high performance and longevity for your electronic systems.
Order your Samtec Series ESQ10214GD socket strip today and experience dependable performance for embedded systems and industrial automation projects.
Frequently Asked Questions
Where can I buy SAMTEC ESQ10214GD?
You can click on the BUY or RFQ button to purchase ESQ10214GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ10214GD?
You can download the ESQ10214GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ10214GD?
SAMTEC
