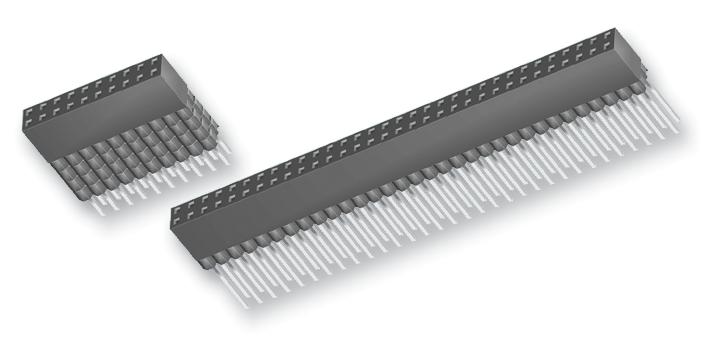

SAMTEC ESQ10512GD High-Density Connector
The product is a high-performance connector designed for reliable electrical connections in industrial and electronic applications. Featuring a robust black glass-filled polyester insulator and phosphor bronze contact material with gold plating, it offers excellent durability and electrical conductivity. The connector supports current ratings up to 5.2 A per pin and voltage ratings suitable for various industrial environments. It operates effectively within a temperature range of -55°C to +105°C, ensuring reliable performance under demanding conditions. Its low insertion force design simplifies installation, making it ideal for high-density circuit applications requiring secure, vibration-resistant connections.
SAMTEC ESQ10512GD High-Density Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Phosphor Bronze with Gold Plating
- Gold Plating Thickness: 50
- Width: 3.68 mm (0.145 inches)
- Maximum Insertion Depth: 6.35 mm (0.250 inches)
- Operating Temperature Range: -55°C to +105°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Current Rating: 5.2 A per pin (ESW/TSW), 2 A per pin (ESQ/TSW)
- Voltage Rating: Suitable for industrial applications, specific ratings see datasheet
- Number of Positions: Varies by model, compatible with PC/104 interface and other high-density connectors
- Insertion Force: Low insertion force design for easy assembly, about 2.6 oz (0.72 N) average
- Withdrawal Force: Approx. 5 oz (1.39 N) average, ensures secure connections
- Max Cycles: 457 to 1887 cycles depending on model
- Standards & Certifications: RoHS compliant, UL recognized for safety
- Compatibility: Mates with specific PC/104 and non-stack-through connector series
- Finish: Gold-plated contacts for corrosion resistance and reliable electrical contact
Buy the Samtec Series ESQ Connector: ESQ10512GD
Order the Samtec ESQ10512GD high-density connector online today and enjoy seamless installation, reliable electrical performance, and durability. Designed with gold-plated contacts and a robust insulator for demanding industrial and electronic applications, it ensures secure connections and long-term stability. Perfect for dense circuit boards, its low insertion force simplifies assembly, saving time and reducing assembly fatigue. RoHS compliant and lead-free, making it an eco-friendly choice. Elevate your electronic projects by purchasing this versatile connector online with confidence and peace of mind.
Buy Samtec ESQ10512GD now and experience unmatched reliability and performance in high-density industrial connections.
Frequently Asked Questions
Where can I buy SAMTEC ESQ10512GD?
You can click on the BUY or RFQ button to purchase ESQ10512GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ10512GD?
You can download the ESQ10512GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ10512GD?
SAMTEC
