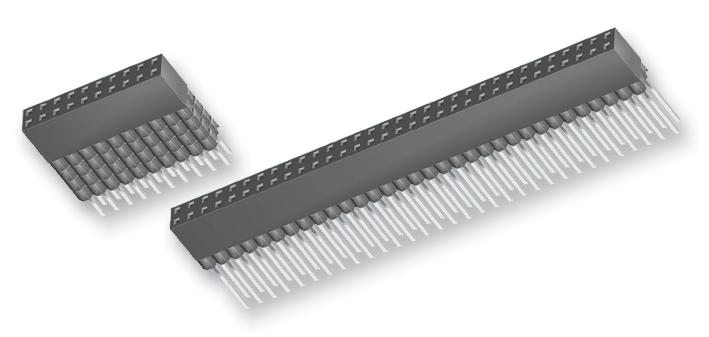

SAMTEC ESQ10612GS Socket Strip
The ESQ series from Samtec features through-hole, elevated socket strips tailored for PC/104 modules. Designed with self-nesting capability, these connectors are compatible with a variety of Samtec series including TSW, MTSW, EW, and others. They offer standard and low insertion force contact options, with a 0.025-inch square tail, available in single, dual, or triple row configurations, and a pitch of 2.54mm. Built for high-temperature environments from -55°C to 125°C, contacts are crafted from phosphor bronze and insulated with black glass-filled polyester, utilizing the Tiger Bite contact system for reliable connections.
SAMTEC ESQ10612GS Socket Strip Specifications:
- Connector Type: Through-hole elevated socket strips
- Compatibility: PC/104 modules, Samtec TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH, HTSS series
- Contact Material: Phosphor bronze
- Insulation Material: Black glass-filled polyester
- Contact Plating: Au-coated, 50" Ni
- Current Rating: 5.2 A per pin (standard), 2 A per pin (low insertion force)
- Voltage Rating: RoHS compliant, specific rating not provided
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.68 mm (0.145") to 6.35 mm (0.250")
- Contact Pitch: 2.54 mm
- Contact Size: 0.025" (0.635mm) square tail
- Cycle Life: Up to 1887 cycles
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Standards: UL E111594, CSA 090871
- Packaging Options: Single, dual, or triple row configurations
Buy the Buy Samtec ESQ Series Part Number ESQ10612GS Online
Secure your PC/104 module connections with the Samtec ESQ series socket strips. Designed for high-temperature environments from -55°C to 125°C, these connectors feature low insertion force contacts, phosphor bronze contacts insulated with black glass-filled polyester, and robust construction for industrial use. Compatible with various Samtec series, they offer excellent cycle life and reliability in tight spaces. Purchase online now to enhance your project's connectivity with high-quality, RoHS-compliant components designed for durability and efficiency.
Order your Samtec ESQ Series ESQ10612GS today and ensure reliable PC/104 connections with high-temp, low-force socket strips for industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC ESQ10612GS?
You can click on the BUY or RFQ button to purchase ESQ10612GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ10612GS?
You can download the ESQ10612GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ10612GS?
SAMTEC
