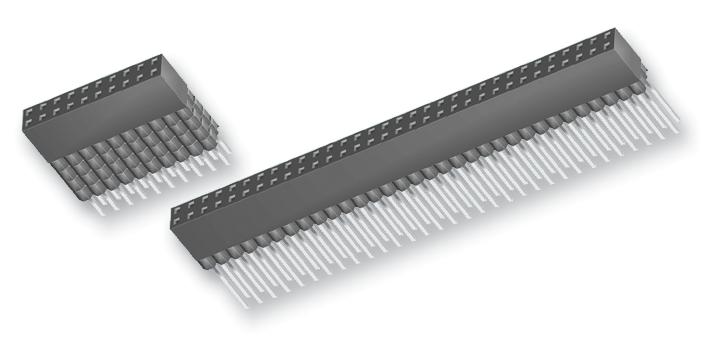

SAMTEC ESQ11812GT Socket Strip
The ESQ series from Samtec features through-hole elevated socket strips designed for PC/104 connectors, supporting various Samtec series. These versatile connector strips come in single, dual, or triple rows with a 2.54mm pitch, accommodating 1 to 36 contacts per row. Crafted with black glass-filled polyester insulators and phosphor bronze contacts plated with 20 micro-inch gold, they operate within -55°C to 125°C. Suitable for industrial use, they meet UL and CSA standards, offering reliable, self-nesting design with standard and low insertion force options for efficient board-to-board connectivity.
SAMTEC ESQ11812GT Socket Strip Specifications:
- Material: Black glass-filled polyester insulator
- Contact Material: Phosphor bronze with 20 micro-inch gold plating
- Pitch Spacing: 2.54mm (0.100 inch)
- Contact Range: 1 to 36 contacts per row, in single, dual, or triple row configurations
- Tail Size: 0.025 inches (0.635mm) square
- Operating Temperature Range: -55°C to 125°C
- Current Rating: 5.2 A per pin (contact dependent)
- Voltage Rating: 250V (consistent with PC/104 standards)
- Insertion Force: Standard and low insertion force variants available
- Compliance: UL E111594, CSA 090871
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Max Cycles: Up to 1887 insertion/removal cycles
- Application: Industrial, embedded systems, PC/104 stack connectors
Buy the Samtec Series ESQ PC/104 Socket: ESQ11812GT
Order the Samtec ESQ series socket strip for PC/104 connectors now to ensure high-quality, reliable connections for your industrial projects. Featuring gold-plated phosphor bronze contacts, black glass-filled polyester insulators, and a wide temperature range of -55°C to 125°C, these socket strips support up to 36 contacts per row in single, dual, or triple configurations. They are RoHS compliant, lead-free, and designed for up to 1887 insertion cycles. Perfect for embedded systems requiring durable, precise, and efficient connectivity solutions, available now for quick online purchase.
Get Samtec ESQ11812GT today—built for precision, durability, and reliable board-to-board connections in industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC ESQ11812GT?
You can click on the BUY or RFQ button to purchase ESQ11812GT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ11812GT?
You can download the ESQ11812GT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ11812GT?
SAMTEC
