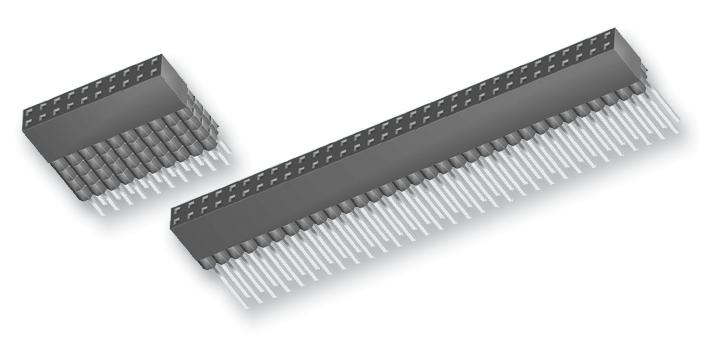

SAMTEC ESQ11813GD PCB Socket Strip
The ESQ series from Samtec consists of PCB through-hole elevated socket strips designed for PC/104 applications, featuring standard and low insertion force contacts with a 0.025-inch square tail. These socket strips support 1 to 36 contacts per row in single, dual, or triple configurations, with a pitch of 2.54mm and vertical orientation. Made from phosphor bronze with gold plating, housed in a black glass-filled polyester insulator, they operate reliably from -55°C to 125°C, meeting UL and CSA standards for industrial use. Ideal for high-reliability electronic connections in demanding environments.
SAMTEC ESQ11813GD PCB Socket Strip Specifications:
- Contact Material: Phosphor Bronze with Gold Plating
- Insulator Material: Black Glass-Filled Polyester
- Contact Pitch: 2.54mm
- Tail Size: 0.025-inch (0.635mm) square
- Temperature Range: -55°C to +125°C
- Supported Contact Rows: Single, dual, triple
- Number of Contacts per Row: 1 to 36
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Current Rating: 5.2 A per pin
- Insertion Force: Standard and Low Insertion Force options
- Withdrawal Force: 5 oz (1.39 N) average
- Max Cycles: 457 to 1887
- Certifications: UL Listed, CSA Certified
Buy the Samtec ESQ – Reliable PCB Socket Strips for Industrial Applications
Purchase the Samtec ESQ series socket strips online today and ensure your electronic assemblies are secure, reliable, and ready for demanding industrial environments. These high-quality PCB through-hole connectors support high-temperature operation from -55°C to 125°C and feature low insertion force contacts for easy assembly. With a range of configurations, they are perfect for PC/104 applications and other industrial electronics requiring durable and precise connection solutions. Order now to benefit from fast delivery and expert support.
Buy Samtec ESQ11813GD now and experience unmatched reliability and performance in PCB connections for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC ESQ11813GD?
You can click on the BUY or RFQ button to purchase ESQ11813GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ11813GD?
You can download the ESQ11813GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ11813GD?
SAMTEC
