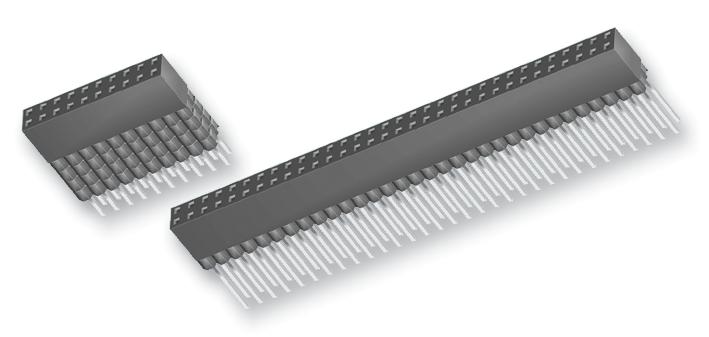

SAMTEC ESQ11813GS PC/104 Socket Strip
The ESQ series from Samtec features through-hole, elevated PC/104 socket strips designed for reliable mounting and connections in industrial environments. Compatible with various Samtec connector series including TSW, MTSW, EW, and more, these socket strips offer self-nesting design with standard and low insertion force contacts. They support 1 to 36 contacts per row with a pitch of 2.54mm, operating from -55°C to 125°C. Made from black glass-filled polyester with gold-plated phosphor bronze contacts, they meet UL and CSA standards for durable, high-performance applications.
SAMTEC ESQ11813GS PC/104 Socket Strip Specifications:
- Connector Series Compatibility: TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH, HTSS
- Socket Type: Through-hole, elevated
- Configuration: Single, dual, or triple row
- Contact Pitch: 2.54 mm
- Contacts per Row: 1 to 36
- Tail Size: 0.025 inches (0.635 mm) square
- Operating Temperature Range: -55°C to 125°C
- Contact Material: Gold-plated phosphor bronze
- Insulator Material: Black glass-filled polyester
- Compliance: UL, CSA standards
- Gold Plating Thickness: 20μ”
- Design: Self-nesting, standard and low insertion force
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Max Cycle Life: 457 to 1887 cycles depending on model
- Insertion/Withdrawal Force: 2.6 to 3.3 oz (0.72 to 0.92 N)
- Insertion Depth: 0.145 to 0.250 inches
- Operating Current: Up to 5.2 A per pin
Buy the Samtec ESQ Series – Reliable PC/104 Socket Strips for Industrial Applications
Upgrade your embedded systems with the durable and versatile Samtec PC/104 socket strips from the ESQ series. Designed for high-performance industrial applications, these through-hole elevated connectors support multi-row configurations with a 2.54 mm pitch, offering excellent reliability and easy mounting. The black glass-filled polyester insulator, combined with gold-plated phosphor bronze contacts, ensures durability across a wide temperature range from -55°C to 125°C. Ideal for demanding environments, these sockets meet all UL and CSA standards, making them a trusted choice for engineers seeking quality and performance.
Order your Samtec ESQ Series PC/104 socket strips today and enhance your industrial electronics projects with dependable, high-performance connectors.
Frequently Asked Questions
Where can I buy SAMTEC ESQ11813GS?
You can click on the BUY or RFQ button to purchase ESQ11813GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ11813GS?
You can download the ESQ11813GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ11813GS?
SAMTEC
