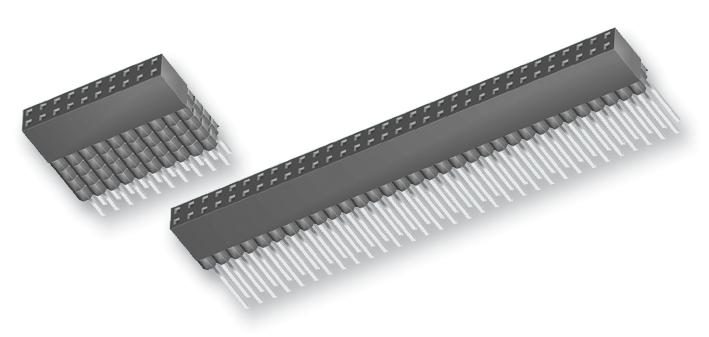

SAMTEC ESQ11814GS Socket Strip
The ESQ series from Samtec features through-hole elevated socket strips designed for PC/104 applications. These self-nesting socket strips are compatible with various Samtec connectors, including TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH, and HTSS series. They offer both standard and low insertion force contacts with a 0.025-inch (0.635mm) square tail, available in single, dual, or triple row configurations. With a pitch of 2.54mm and capacity of 1 to 36 contacts per row, these sockets are made of phosphor bronze, plated with 20-microns of gold, and operate reliably from -55°C to 125°C. The insulator is black glass-filled polyester, and the connectors utilize the Tiger Buy contact system, compliant with UL and CSA standards, ideal for industrial and electronic miniaturized systems.
SAMTEC ESQ11814GS Socket Strip Specifications:
- Contact Material: Phosphor bronze
- Plating: 20-microns of gold
- Operation Temperature: -55°C to 125°C
- Insulator Material: Black glass-filled polyester
- Pin Size: 0.025-inch (0.635mm) square tail
- Configuration: Single, dual, or triple row
- Contact Capacity: 1 to 36 contacts per row
- Pitch Spacing: 2.54mm
- Compliance: UL E111594, CSA 090871
- Insertion Force: Low or standard options available
- RoHS Compliant: Yes
- Max Cycles: Up to 1887
- D terminal: Self-nesting with compatibility across multiple connector series
Buy the Buy Samtec ESQ Series Socket Strips Part Number ESQ11814GS Online
Purchase the Samtec ESQ series socket strips online for your PC/104 and industrial electronics projects. These high-quality connectors feature 20-micron gold plating, versatile configurations, and operate reliably from -55°C to 125°C. Their black glass-filled polyester insulators and compatibility with various Samtec connector series make them ideal for miniature, high-density applications requiring durability and precision. Ensure fast delivery and dependable quality by ordering directly from authorized suppliers today, and give your electronic assemblies a professional boost with these premium socket strips.
Order your Samtec ESQ Series socket strip with high-reliability gold contacts today and enhance your PCB connections with robust performance.
Frequently Asked Questions
Where can I buy SAMTEC ESQ11814GS?
You can click on the BUY or RFQ button to purchase ESQ11814GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ11814GS?
You can download the ESQ11814GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ11814GS?
SAMTEC
