SAMTEC ESQ11814GT Elevated Socket Strip
The ESQ series from Samtec features through-hole elevated socket strips ideal for PC/104 applications and industrial use. These socket strips, available with standard or low insertion force contacts, have a 0.025-inch square tail and are compatible with multiple Samtec connector series like TSW, EW, and TSS. They come with options of single, dual, or triple rows, support 1-36 contacts per row, and are built with phosphor bronze contacts plated in gold. The black polyester insulator houses the Tiger Buy contact system, operating over -55°C to 125°C and meeting UL and CSA standards, providing reliable performance in demanding environments.
SAMTEC ESQ11814GT Elevated Socket Strip Specifications:
- Contact Material: Phosphor Bronze with Gold Plating
- Insulator Material: Black Glass Filled Polyester
- Contact Type: Standard or Low Insertion Force
- Tail Thickness: 0.025 inch (0.635 mm) square
- Pitch Spacing: 2.54 mm
- Number of Contacts: 1 to 36 per row
- Operating Temperature Range: -55°C to 125°C
- RoHS Compliant: Yes
- UL Standard: E111594
- CSA Certified: 090871
- Insertion Force: 3.07 (0.83 N) avg for standard, 2.6 (0.72 N) for low force
- Withdrawal Force: 5 oz (1.39 N) for standard, 2.9 oz (0.81 N) for low force
- Max Cycles: 457 to 1887
- Dimensions: Compatible with PC/104 stack widths, pitch 2.54 mm
- Material: Glass-filled polyester insulator, black color
- Compliance: RoHS, UL, CSA
- Application: Industrial, embedded systems, PC/104 modules

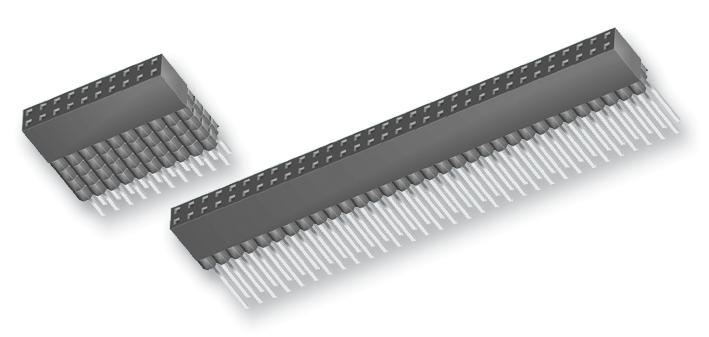

Buy the Buy Samtec ESQ Series Socket Strips Part Number ESQ11814GT Online
Purchase the Samtec ESQ series elevated socket strips online today for dependable, high-performance connections in embedded systems and industrial environments. Designed with optional low or standard insertion force contacts, these socket strips feature a 2.54mm pitch and accommodate 1 to 36 contacts per row. Made with gold-plated phosphor bronze contacts and a durable glass-filled polyester insulator, they ensure long-lasting operation across a temperature range of -55°C to 125°C. Order now to enhance your PC/104 and industrial wiring solutions with ease.
Get Samtec ESQ11814GT today—built for reliable connectivity in industrial and PC/104 applications.
Frequently Asked Questions
Where can I buy SAMTEC ESQ11814GT?
You can click on the BUY or RFQ button to purchase ESQ11814GT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ11814GT?
You can download the ESQ11814GT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ11814GT?
SAMTEC
