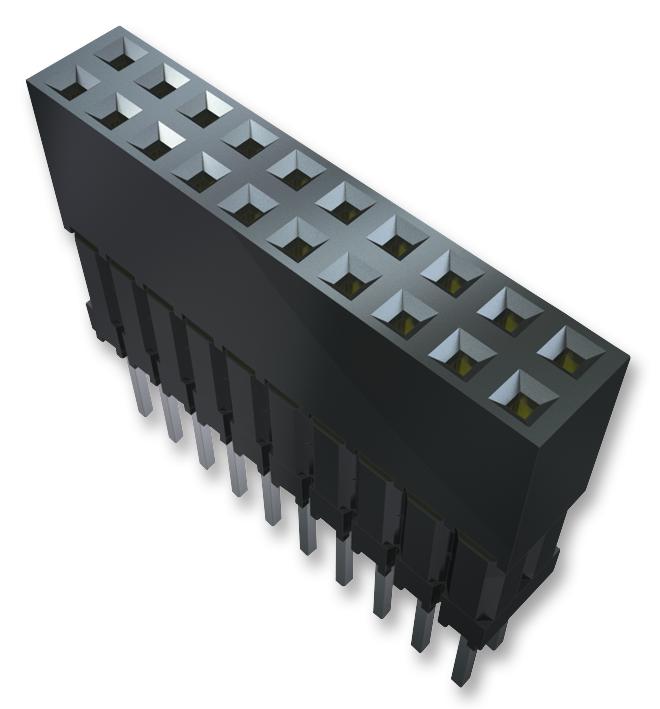

SAMTEC ESQ12044GT Socket Strip
The ESQ series from Samtec offers through-hole, elevated socket strips ideal for PC/104 applications. These self-nesting socket strips are compatible with various Samtec connector series, including TSW, MTSW, EW, and others. They feature standard and low insertion force contacts with a 0.025-inch square tail, available in single, dual, or triple row configurations with 2.54mm pitch spacing. Constructed with phosphor bronze contacts gold-plated on a black glass-filled polyester insulator, supporting temperatures from -55°C to 125°C. Designed for industrial use, they meet UL and CSA standards for durability and reliability.
SAMTEC ESQ12044GT Socket Strip Specifications:
- Connector type: Through-hole, elevated socket strips
- Series: ESQ from Samtec
- Contact Material: Phosphor Bronze
- Plating: Gold
- Insulator Material: Black glass-filled polyester
- Temperature Range: -55°C to +125°C
- Pitch Spacing: 2.54mm
- Tail Size: 0.025 inches (0.635mm) square
- Configuration: Single, dual, or triple rows
- RoHS Compliance: Yes
- Standards: UL E111594, CSA 090871
Buy the Samtec Series ESQ PC/104 Socket Strips: ESQ12044GT
Experience the high-quality performance of the Samtec ESQ socket strips designed for PC/104 applications. With low and standard insertion force options, these sockets feature gold-plated phosphor bronze contacts in configurations suitable for various industrial needs. The black glass-filled polyester insulator ensures durability, with a temperature range from -55°C to 125°C, making them reliable for demanding environments. Perfect for engineers and technicians seeking dependable, RoHS-compliant connectors with easy installation and long service life. Purchase now for quality and reliability.
Get Samtec ESQ12044GT today—engineered for reliable industrial-grade connections and long-lasting performance.
Frequently Asked Questions
Where can I buy SAMTEC ESQ12044GT?
You can click on the BUY or RFQ button to purchase ESQ12044GT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ12044GT?
You can download the ESQ12044GT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ12044GT?
SAMTEC
