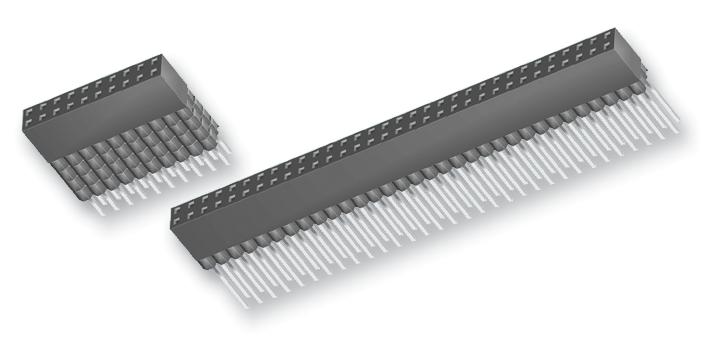

SAMTEC ESQ12513GT Elevated Socket Strips
The ESQ series from Samtec provides through-hole, elevated socket strips ideal for PC/104 applications and other industrial uses. Designed for versatility, these socket strips accommodate various connector series with standard or low insertion force contacts, featuring a 0.025-inch (0.635mm) square tail and pitch spacing of 2.54mm. Available in single, dual, or triple row configurations, they support up to 36 contacts per row. Made of phosphor bronze with gold plating, they operate within a temperature range of -55°C to 125°C, and are UL and CSA certified, ensuring durability and reliability.
SAMTEC ESQ12513GT Elevated Socket Strips Specifications:
- Contact Material: Phosphor Bronze with Gold Plating
- Insulator Material: Black Glass Filled Polyester
- Temperature Range: -55°C to +125°C
- Pitch Spacing: 2.54mm
- Tail Size: 0.025-inch (0.635mm) square
- Configuration: Single, Dual, or Triple Row
- Support: 1 to 36 contacts per row
- RoHS Compliant: Yes
- Standards: UL E111594, CSA 090871
- Contact Types: Standard and Low Insertion Force
- Max Cycles: 1000
- Insertion Force: 3.07 (0.83 N) avg for standard; 2.6 oz (0.72 N) for low insertion force
- Withdrawal Force: 5 oz (1.39 N) for standard; 2.9 oz (0.81 N) for low insertion force
Buy the Samtec Series ESQ Socket Strips: ESQ12513GT
Enhance your industrial and PC/104 applications with Samtec Series ESQ socket strips, featuring high-grade phosphor bronze contacts, gold plating for durability, and versatile configurations supporting up to 36 contacts. Its robust design meets UL and CSA standards, with a wide temperature range from -55°C to 125°C, ensuring reliable performance in harsh environments. These socket strips are RoHS compliant, easy to install, and perfect for demanding industrial projects requiring precision and durability. Buy online today for dependable connectivity solutions.
Order your Samtec Series ESQ12513GT elevated socket strips today and ensure reliable connections for your PC/104 and industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC ESQ12513GT?
You can click on the BUY or RFQ button to purchase ESQ12513GT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ESQ12513GT?
You can download the ESQ12513GT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ESQ12513GT?
SAMTEC
