SAMTEC EW5011SD500 Flexible Circuit Board Connector
The EW5011SD500 is a high-performance, flexible circuit board connector designed for reliable electrical connections in electronic assemblies. Constructed with durable materials, it features robust gold and tin plating over phosphor bronze contacts, ensuring excellent conductivity and corrosion resistance. Its compact design is suitable for applications requiring space efficiency and secure mating. Capable of operating within temperatures from -55°C to +125°C, this connector is RoHS compliant and solderable, making it ideal for demanding electronic environments. The connector offers various configurations, including differing pin counts and heights, tailored to diverse assembly needs. Easy to install, it enhances circuit stability and longevity while supporting intricate system designs.
SAMTEC EW5011SD500 Flexible Circuit Board Connector Specifications:
- Insulator Material: Black Glass-filled Polyester, Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant and Lead-Free Solderable
- Number of Pins: Varies (e.g., 13 pins shown)
- Contact Thickness: 0.025 inch (0.64 mm)
- Length: Approximately 1.009 inches (25.66 mm)
- Height Options: Varies
- Connector Width: 0.090 inches (2.29 mm)
- Application: Board stacking, flexible circuits, high-density connections
- Certificate: RoHS Compliant
- Other Platings options available upon request
- Designed for mechanical stability and precise mating, suitable for high-reliability electronics
- Connector is non-standard and non-returnable, recommended to use mechanical spacers for enhanced stability

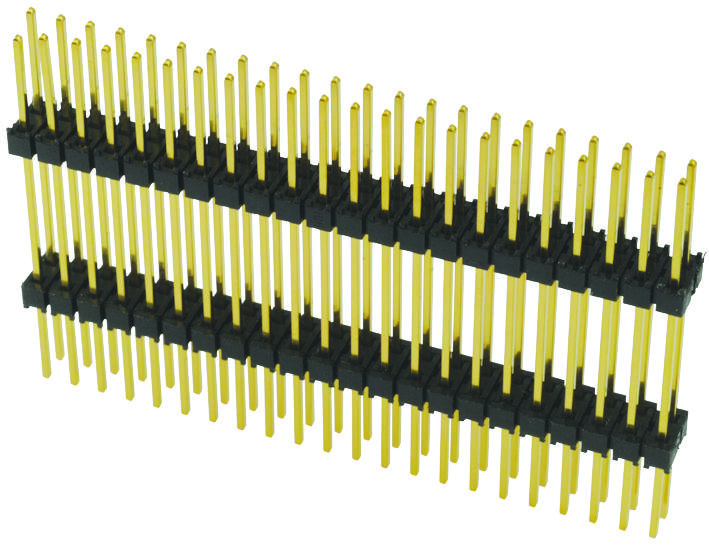

Buy the Buy Samtec EW5011SD500 Part Number EW5011SD500 Online
