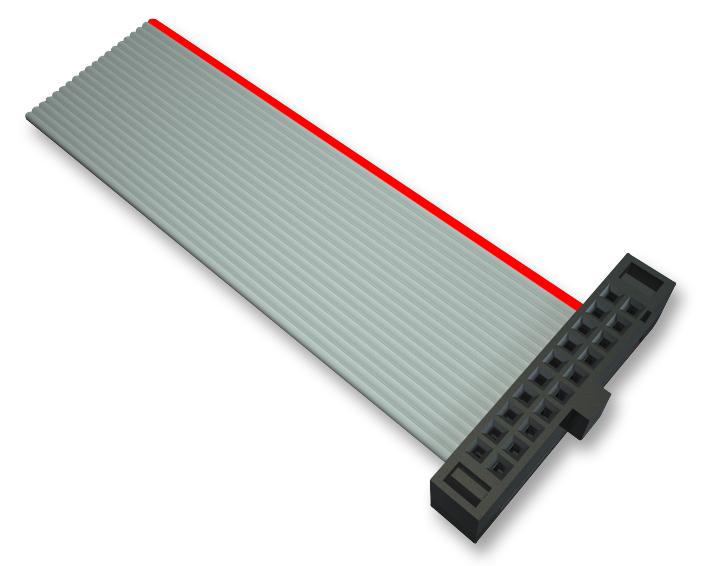

SAMTEC FFSD05D100001N Flat IDC Wire Cable Connector
The SAMTEC FFSD-05-D-10.00-01-N is a flat IDC (Insulation Displacement Connector) wire cable connector within the TIGER EYE series. Designed for robust and reliable connections in various industrial applications, this connector utilizes a PBT insulator and BeCu contact with a plating of 10 µ” (0.25 µm) Au over 50 µ” (1.27 µm) Ni on the contact area, and Sn over 50 µ” (1.27 µm) Ni. It supports a current rating of 2.3A per pin (when using 2 pins powered) and operates within a temperature range of -40°C to +105°C. Available with various options including assembled length and polarization, this connector is ideal for applications requiring secure and efficient data transmission.
SAMTEC FFSD05D100001N Flat IDC Wire Cable Connector Specifications:
- Material: PBT Insulator, BeCu Contact
- Plating: 10 µ” Au over 50 µ” Ni (contact area), Sn over 50 µ” Ni
- Contact Type: BeCu
- Current Rating: 2.3 A per pin (2 pins powered)
- Operating Temperature: -40 °C to +105 °C
- Lead Size Accepted: (0.41 mm) .016" SQ
- Insertion Depth: (2.64 mm) .104" to (3.17 mm) .125"
- Wire Gauge: 30 AWG
- Assembled Length: 2 inches minimum
- Polarization: Notch option
- RoHS Compliant: Yes
Buy the FFSD-05-D-10.00-01-N SAMTEC Flat IDC Wire Cable Connector | myMectronic
Purchase the SAMTEC FFSD-05-D-10.00-01-N connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC FFSD05D100001N?
You can click on the BUY or RFQ button to purchase FFSD05D100001N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FFSD05D100001N?
You can download the FFSD05D100001N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FFSD05D100001N?
SAMTEC
