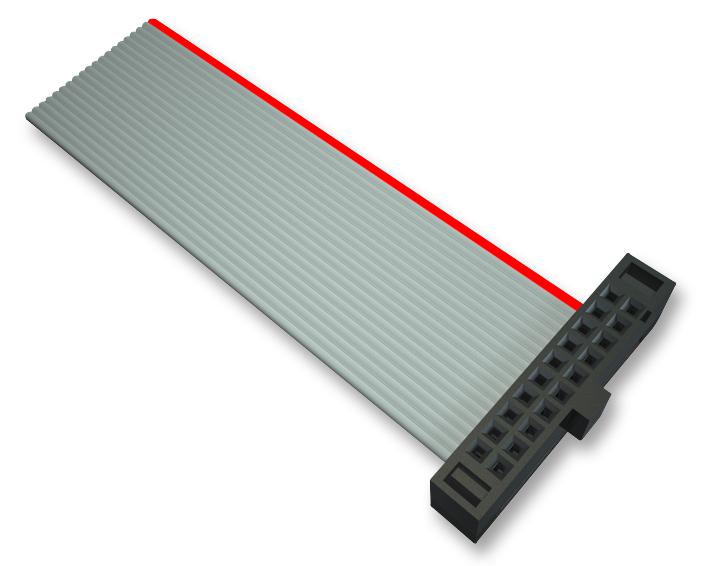

SAMTEC FFSD10S060001N Flat IDC Wire Cable Connector
The SAMTEC FFSD series is a family of flat IDC wire cable connectors designed for applications requiring flexible and compact connections. These connectors offer a robust solution for connecting flat flex cables, ensuring reliable signal transmission. Constructed with a PBT insulator and BeCu contacts with gold plating, the FFSD connectors provide excellent electrical performance and durability. Customizable options include assembled length, polarization, and strain relief, making them suitable for a wide range of industrial and commercial applications. Please note that this series is non-standard and non-returnable.
SAMTEC FFSD10S060001N Flat IDC Wire Cable Connector Specifications:
- Material: Insulator: PBT, Contact: BeCu
- Plating: 10 µ" (0.25 µm) Au over 50 µ" (1.27 µm) Ni on contact area; Sn over 50 µ" (1.27 µm) Ni
- Wire Gauge: 30 AWG
- Current Rating: 2.3 A per pin (2 pins powered)
- Operating Temperature: -40 °C to +105 °C
- Lead Size Accepted: (0.41 mm) .016" SQ
- Insertion Depth: 2.64 mm to 3.17 mm
- Polarization: Notch option
- Assembled Length: 2 inches minimum
- RoHS Compliant: Yes
Buy the FFSD-10-S-06.00-01-N SAMTEC Flat IDC Wire Cable Connector | myMectronic
Securely purchase the SAMTEC FFSD-10-S-06.00-01-N connector online for reliable and efficient connections.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC FFSD10S060001N?
You can click on the BUY or RFQ button to purchase FFSD10S060001N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FFSD10S060001N?
You can download the FFSD10S060001N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FFSD10S060001N?
SAMTEC
