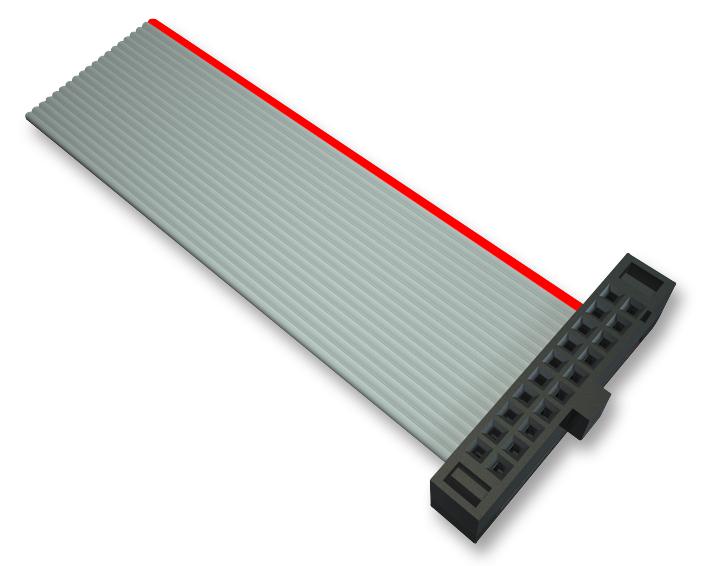

SAMTEC FFSD25D040001N Flat IDC Wire Cable Connector
The SAMTEC FFSD series is a family of flat IDC wire cable connectors designed for use in a variety of applications requiring reliable and compact connections. These connectors feature a PBT insulator, BeCu contacts with a gold plating over nickel, and are available with various options including polarization notches and assembled length adjustments. They are suitable for applications requiring current ratings up to 2.3A per pin and operate within a temperature range of -40°C to +105°C. Note that this series is non-standard and non-returnable.
SAMTEC FFSD25D040001N Flat IDC Wire Cable Connector Specifications:
- Material: Insulator: PBT, Contact: BeCu
- Plating: 10 µ" (0.25 µm) Au over 50 µ" (1.27 µm) Ni on contact area; Sn over 50 µ" (1.27 µm) Ni
- Wire Gauge: 30 AWG
- Current Rating: 2.3 A per pin (2 pins powered)
- Operating Temperature: -40 °C to +105 °C
- Lead Size Accepted: (0.41 mm) .016" SQ
- Insertion Depth: (2.64 mm) .104" to (3.17 mm) .125"
- RoHS Compliant: Yes
- Polarization: Notch option
- Assembled Length: 2 inches minimum
- Available Options: –RW = Wiring [Reverse], –D “XX” = Chain [Daisy], –R = Reverse, –O = Reverse [Outside], –SR = Relief [Strain]
- Mates With: FTS, FTSH, EHF, SHF, ESHF
Buy the FFSD-25-D-04.00-01-N SAMTEC Flat IDC Wire Cable Connector | myMectronic
Securely purchase the SAMTEC FFSD-25-D-04.00-01-N connector online today.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC FFSD25D040001N?
You can click on the BUY or RFQ button to purchase FFSD25D040001N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FFSD25D040001N?
You can download the FFSD25D040001N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FFSD25D040001N?
SAMTEC
