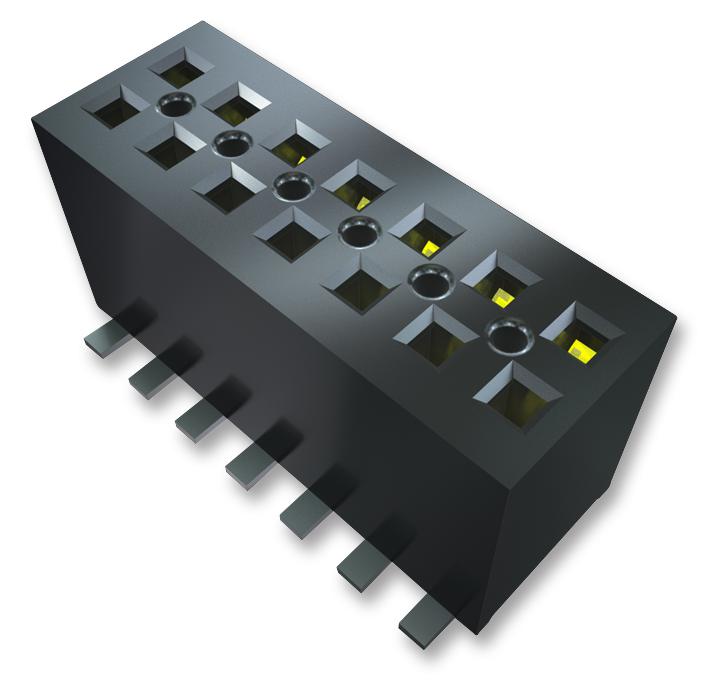

SAMTEC FLE10501GDVKTR interconnect socket
The FLE series by Samtec offers cost-effective, reliable sockets designed for high-performance electronic connections. Constructed with phosphor bronze contacts plated with gold over nickel, these sockets support current ratings suitable for various applications. They operate within a temperature range of -55°C to +125°C, ensuring durability in demanding environments. Features include a contact resistance of 15mΩ, an insertion depth of up to 4.37 mm, and a maximum of 100+ cycles, making them ideal for PCB interconnects, pass-through applications, and high-reliability systems. Optional pick & place pads are available to streamline assembly.
SAMTEC FLE10501GDVKTR interconnect socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over Ni (1.27 µm)
- Current Rating: per pin
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15mΩ
- Insertion Depth: up to 4.37 mm (0.172")
- Insertion Force: 1.5 oz (0.42 N)
- Normal Force: 100 grams (0.98 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: 100+
- RoHS Compliant
Buy the Buy Samtec FLE Series Socket Part Number FLE10501GDVKTR Online
Secure your electronic projects with the Samtec FLE Series interconnect socket. This cost-effective socket features gold-over-nickel plating for excellent corrosion resistance, operates within -55°C to +125°C, supports over 100 cycles, and includes optional pick & place pads for easy assembly. Designed for PCB pass-through and high-reliability connections, it is RoHS compliant and features a maximum contact resistance of 15mΩ. Perfect for demanding industrial and electronic applications requiring robust, durable interconnect solutions available for quick online purchase.
Order your Samtec FLE Series FLE10501GDVKTR socket today and ensure reliable connections with high durability and easy PCB integration.
Frequently Asked Questions
Where can I buy SAMTEC FLE10501GDVKTR?
You can click on the BUY or RFQ button to purchase FLE10501GDVKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FLE10501GDVKTR?
You can download the FLE10501GDVKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FLE10501GDVKTR?
SAMTEC
