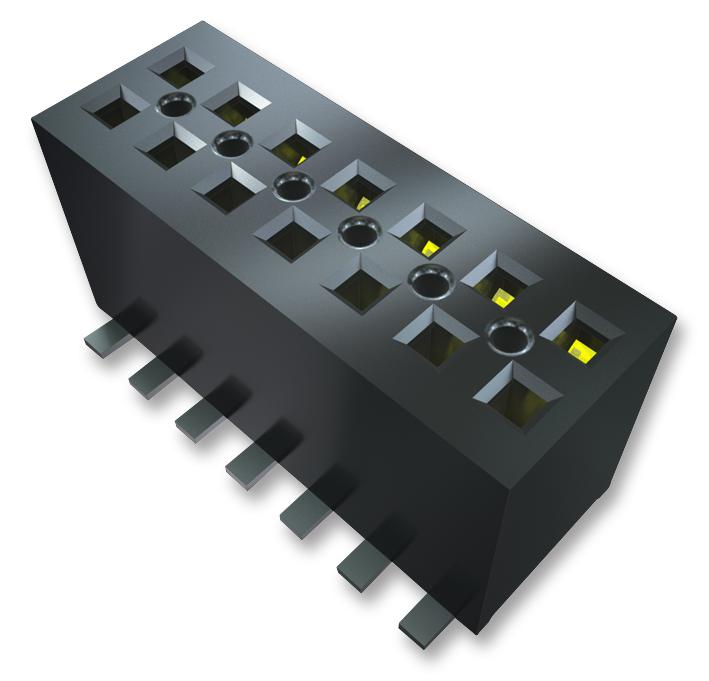

SAMTEC FLE10801GDVKTR PCB Socket
The FLE series is a cost-effective and reliable socket designed for high-performance applications. Crafted with phosphor bronze contacts plated with gold over nickel, these components support up to 100+ cycles and operate within a temperature range of -55°C to +125°C. They feature easy solderability, coplanarity of 0.004 inches, and are RoHS compliant. Suitable for PCB mounting, these sockets support micro pitches of 1.27 mm (.050 inch) and are ideal for pass-through, FTSH, and FTS applications with optional pick-and-place pads available. Designed for durability and versatile use in demanding environments.
SAMTEC FLE10801GDVKTR PCB Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over Ni (1.27 μm)
- Current Rating: Per pin (unspecified)
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15mΩ
- Insertion Depth: 0.072 to 0.172 inches (1.83 to 4.37 mm)
- Insertion Force: 1.5 oz (0.42 N)
- Normal Force: 100 grams (0.98 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: 100+
- RoHS Compliant: Yes
- Processing: Bead free, solderable
- Coplanarity: 0.004 inches (0.10 mm)
- Supported Applications: FTSH, FTS, FW, contact pass-through, FFMD, FMTP
- Pitch: 1.27 mm (.050 inch)
- Optional Picks & Place Pads: Available
- Additional Platings Options: Available (MOQ required)
- Availability: Reels, other lengths and styles subject to non-standard options
Buy the Samlec FLE-110-01-G-DV – Reliable PCB Socket for Industrial Applications
Order the Samlec FLE series PCB socket today for reliable, high-performance connections. Designed with gold-plated contacts, supporting over 100 cycles, and operating from -55°C to +125°C, it's ideal for demanding industrial, electronic, and PCB applications. The socket offers easy soldering, excellent coplanarity, and optional pick-and-place pads for efficient assembly. Its robust construction ensures long-lasting durability in harsh conditions, making it a versatile choice for manufacturers and engineers seeking quality, cost-effective interconnect solutions.
Get Samlec FLE-110-01-G-DV today—built for high durability and precise connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC FLE10801GDVKTR?
You can click on the BUY or RFQ button to purchase FLE10801GDVKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FLE10801GDVKTR?
You can download the FLE10801GDVKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FLE10801GDVKTR?
SAMTEC
