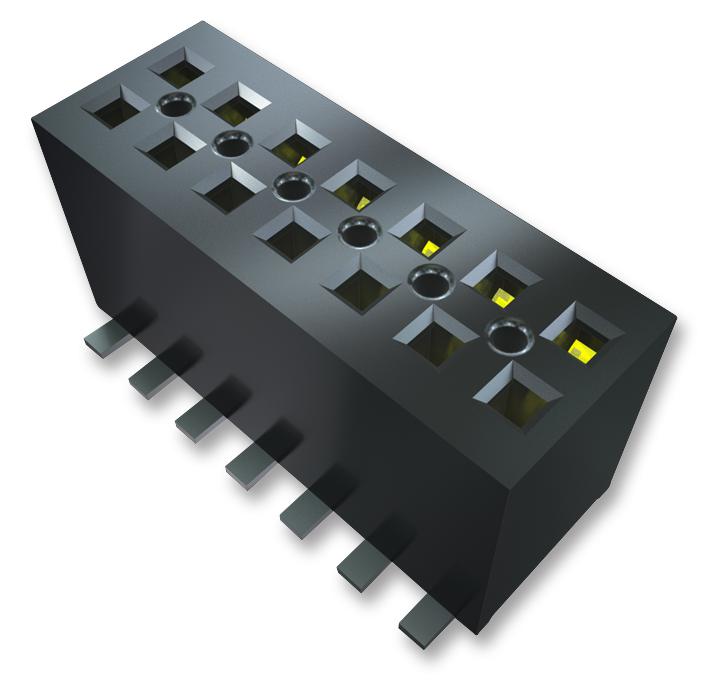

SAMTEC FLE11901GDV PCB Socket
The FLE series from Samtec offers cost-effective, reliable sockets suitable for a variety of PCB applications. These connectors feature phosphor bronze contacts plated with gold over nickel, supporting a current rating suitable for powered environments. Designed for high durability, they withstand over 100 mating cycles, with an operating temperature range from -55°C to +125°C. The connectors support optional pick & place pads for automated assembly, and their coplanarity and insertion force make them ideal for high-density, micro pitch connections in industrial and electronic equipment.
SAMTEC FLE11901GDV PCB Socket Specifications:
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel (1.27 um)
- Current Rating: Per pin, suitable for powered environments
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15mΩ
- Insertion Depth: 0.072" to 0.172" (1.83 mm to 4.37 mm)
- Insertion Force: 1.5 oz (0.42 N) per contact
- Normal Force: 100 grams (0.98 N)
- Withdrawal Force: 1.5 oz (0.42 N) per contact
- Max Cycles: 100+ insertions
- RoHS Compliant
- Processing: Bead free, solderable
- Coplanarity: Max 0.004" (0.10 mm)
- Size Options: 1.27 mm pitch, customizable with optional pick & place pads
- Available in multiple lengths and styles, non-standard options may incur additional charges
Buy the Buy Samtec FLE-11901GDV PCB Socket Part Number 11901GDV Online
Experience the reliability and efficiency of the Samtec FLE series PCB sockets, designed for high-density, high-cycle applications. These sockets feature gold over nickel plating for optimal conductivity and corrosion resistance. With a temperature range spanning -55°C to +125°C, they support demanding industrial environments. Their easy solderability, precise coplanarity, and optional pick & place pads make automated assembly simple and effective. Suitable for various PCB designs, these durable connectors ensure long-lasting performance in electronics, automation, and industrial control systems. Order online today for fast delivery and dependable connectivity.
Get Samtec FLE-110-01-G-DV today—built for durability and high-performance PCB connections in industrial applications.
