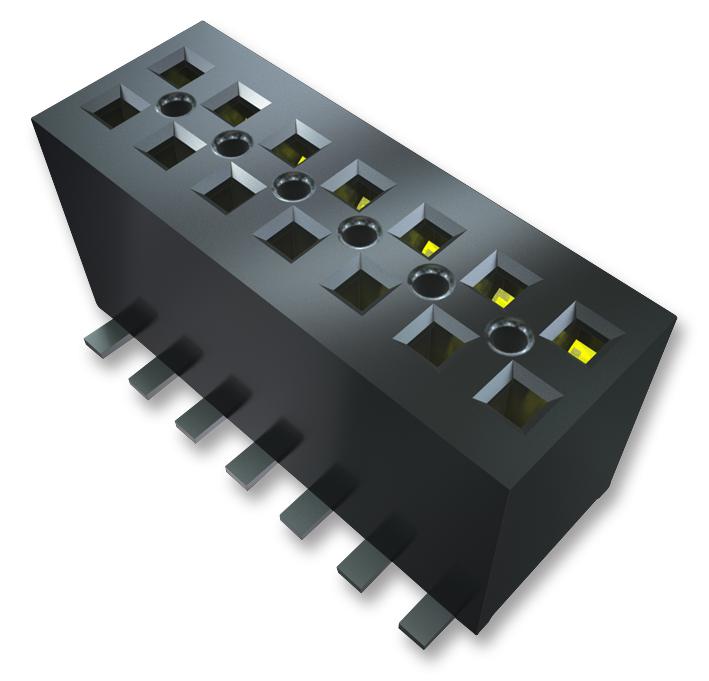

SAMTEC FLE12401GDV Field Socket
The FLE series are cost-effective, reliable sockets designed for high-performance PCB connections in various electronic applications. Featuring phosphor bronze contacts with gold over nickel plating, these sockets support current ratings up to specified limits and operation temperatures from -55°C to +125°C. They are RoHS compliant, with an insertion depth ranging from 0.072 inches to 0.172 inches, and accommodate pass-through and micro pitch configurations. Suitable for FTSH, FTS, FW, and pass-through applications, these sockets integrate optional pick & place pads for automated assembly, ensuring durability and consistent performance in demanding environments.
SAMTEC FLE12401GDV Field Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel (1.27 μm)
- Current Rating: Per pin (specific values not provided)
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15mΩ
- Insertion Depth: 0.072 to 0.172 inches (1.83 to 4.37 mm)
- Insertion Force: 1.5 oz (0.42 N)
- Normal Force: 100 grams (0.98 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: Over 100
- RoHS compliant, bead-free solderable
- Coplanarity: Up to 0.004 inches (0.10 mm)
- Pitch: 1.27 mm (0.050 inches)
- Other configurations include optional pick & place pads, reel packaging options, and customizable lengths and styles.
Buy the Samlec FLE-120-01-G-DV – Reliable Socket for Industrial Applications
Discover the Samlec FLE series sockets, engineered for reliable PCB connections in industrial and electronic systems. Featuring high-quality phosphor bronze contacts with gold over nickel plating, these sockets support operation from -55°C to +125°C. They are RoHS compliant, support over 100 mating cycles, and include optional pick & place pads for automated assembly. Designed for pass-through, micro pitch, and various configurations, these sockets ensure secure contacts, durability, and easy installation—ideal for demanding industrial applications and electronic manufacturing needs.
Get Samlec FLE-120-01-G-DV today—built for precision and long-lasting durability in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FLE12401GDV?
You can click on the BUY or RFQ button to purchase FLE12401GDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FLE12401GDV?
You can download the FLE12401GDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FLE12401GDV?
SAMTEC
