SAMTEC FLE12701GDV High-Density Electronic Socket
The FLE series from Samtec offers cost-effective, reliable sockets with a 1.27 mm pitch, suitable for high-density electronic connections. Made from black liquid crystal polymer insulator material and phosphor bronze contacts plated with gold over nickel, these connectors support currents per pin with an operating temperature range from -55°C to +125°C. They feature low contact resistance of 15 milliohms, and are designed for up to 100+ insertion cycles. Suitable for pass-through applications with optional pick & place pads, these RoHS compliant sockets are ideal for compact, high-performance electronic assemblies.
SAMTEC FLE12701GDV High-Density Electronic Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel (1.27 μm)
- Current Rating: varies per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 15 milliohms
- Insertion Depth: 1.83 mm to 4.37 mm
- Insertion Force: 1.5 oz (0.42 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Normal Force: 100 grams (0.98 N)
- Max Cycles: 100+
- RoHS Compliant: Yes
- Pitch: 1.27 mm
- Optional Features: Pick & Place pads, Reel Packaging
- Dimensions: Length varies based on model, typical diameter 0.050 inch

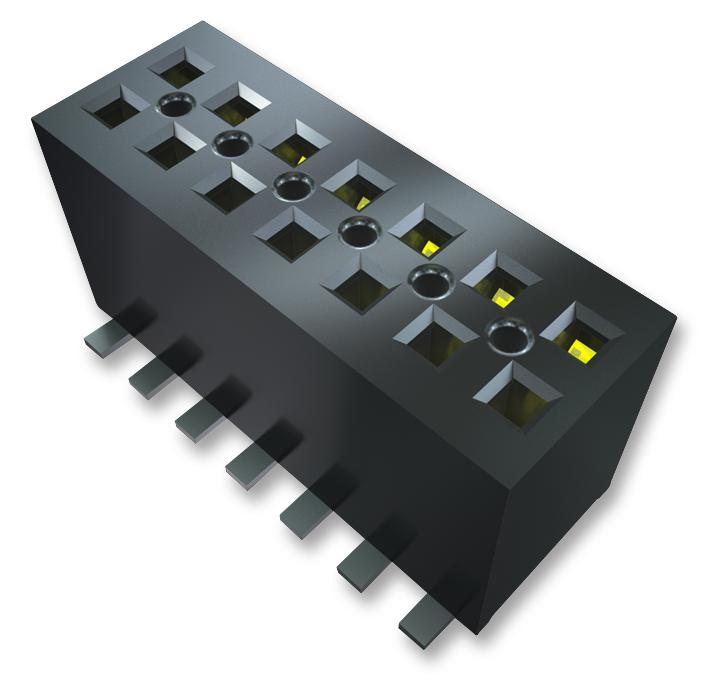

Buy the Buy Samtec FLE Series Socket Part Number FLE12701GDV Online
Experience the reliability and high-density design of the Samtec FLE series socket, perfect for PCB connections requiring durability and compactness. With gold-plated contacts, operating from -55°C to +125°C, and supporting over 100 insertion cycles, this RoHS compliant connector ensures optimal performance in demanding electronics. Its 1.27 mm pitch makes it suitable for a wide range of applications, including pass-through and fine-pitch connections. Order online today for fast delivery and quality assurance on this cost-effective, robust solution for your projects.
Order your Samtec SeriesFLE PartNumber FLE12701GDV today and enhance your electronic connections with this high-performance, reliable socket.
Frequently Asked Questions
Where can I buy SAMTEC FLE12701GDV?
You can click on the BUY or RFQ button to purchase FLE12701GDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FLE12701GDV?
You can download the FLE12701GDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FLE12701GDV?
SAMTEC
