SAMTEC FLE13301GDV High-Speed Connector
The FLE series by Samtec is a cost-effective, reliable socket designed for high-performance applications. Made with phosphor bronze contacts plated with gold over nickel, it accommodates operating temperatures from -55°C to +125°C. The socket features a 1.27 mm pitch, with an insertion depth ranging from 0.072" to 0.172". Its robust design allows for over 100 mating cycles, making it suitable for pass-through and contact applications like FTSH, FTS, and FW. Optional pick & place pads enhance automation compatibility.
SAMTEC FLE13301GDV High-Speed Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel (1.27 mm), 1.27 mm pitch
- Current Rating: per pin, with powered operation
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 15mΩ
- Insertion Depth: 0.072" to 0.172"
- Insertion Force: 1.5 oz (0.42 N)
- Normal Force: 100 grams (0.98 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: 100+
- RoHS Compliant
- Processing: Bead-Free, Solderable
- Coplanarity: 0.004" (0.10 mm)
- Optional Pick & Place Pads
- Compatible with FTSH, FTS, FW, FFMD, FMTP applications
- Available in reel and optional plating options

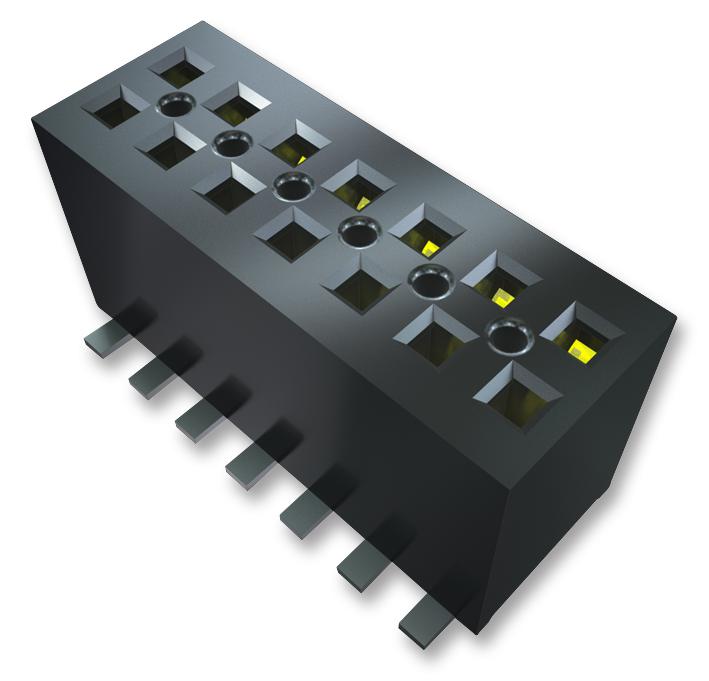

Buy the Samtec Series FLE: FLE-110-01-G-DV
Purchase the Samtec FLE-110-01-G-DV high-speed connector online today. Engineered for durability and reliable performance, this socket offers a 1.27 mm pitch, gold plating, and high-cycle design. Suitable for demanding applications, it features an operating temperature from -55°C to +125°C, over 100 mating cycles, and optional pick & place pads for automation. Enhance your electronic assemblies with this cost-effective solution, ensuring long-term performance, easy integration, and compliance with RoHS standards.
Get Samtec FLE-110-01-G-DV socket today—built for high reliability, automation bonding, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC FLE13301GDV?
You can click on the BUY or RFQ button to purchase FLE13301GDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FLE13301GDV?
You can download the FLE13301GDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FLE13301GDV?
SAMTEC
