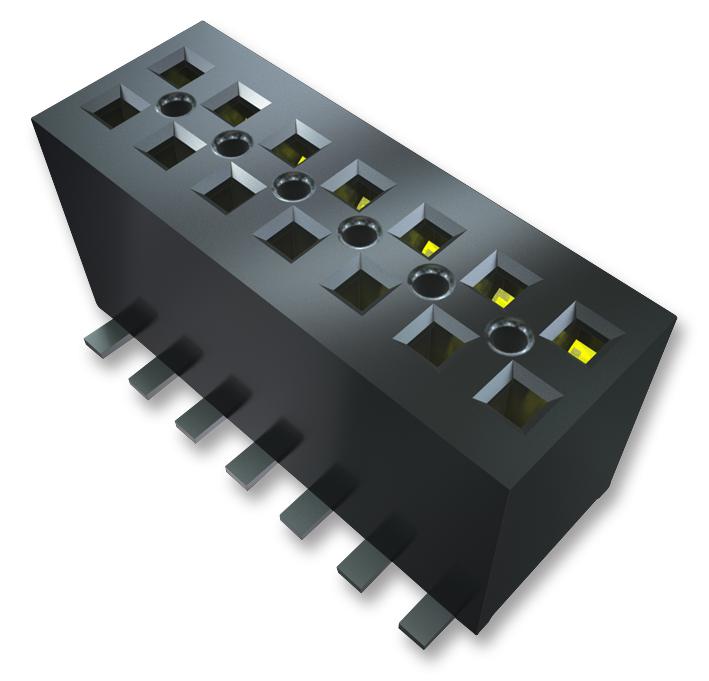

SAMTEC FLE13901GDV PCB Socket
The FLE series from Samtec offers cost-effective, reliable sockets designed for extensive use in PCB applications. Made from black liquid crystal polymer insulator material and phosphor bronze contacts plated with gold over nickel, these connectors support current ratings per pin and operate within a temperature range of -55°C to +125°C. Features include low contact resistance of 15mΩ, easy solderability, coplanarity, and optional pick & place pads. Suitable for pass-through applications, they withstand over 100 cycles, ensuring durability in demanding electronic systems.
SAMTEC FLE13901GDV PCB Socket Specifications:
- Insulator Material: Black liquid crystal polymer
- Contact Material: Phosphor bronze
- Plating: Au over Ni (1.27 um)
- Current Rating: per pin, operating temp range -55°C to +125°C
- Contact Resistance: 15mΩ
- Insertion Depth: 0.072" to 0.172"
- Insertion Force: 1.5 oz (0.42 N), normal force: 100 grams (0.98 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: >100
- RoHS Compliant: Yes
- Surface Mount: Bead-free solderable, coplanarity max 0.004"
- Optional features: Pick & Place pads, Reel availability
- Dimensions: 1.27 mm pitch (0.050"), lengths and styles vary
- Operating temperature: -55°C to +125°C
Buy the Buy Samtec FLE Series Part Number FLE13901GDV Online
Purchase the Samtec FLE series PCB socket online today to ensure high-quality, reliable connections in your electronic projects. These sockets are designed for extensive use with a broad temperature range, stable contact resistance, and easy soldering features. Their optional pick & place pads facilitate quick assembly, making them ideal for surface-mount technology. With over 100 cycles durability and RoHS compliance, this product guarantees long-term performance and environmental safety. Get your FLE13901GDV now for seamless integration in your sophisticated electronic systems.
Buy Samtec FLE13901GDV now and experience reliable, high-performance PCB interconnect solutions designed for durability and efficiency.
