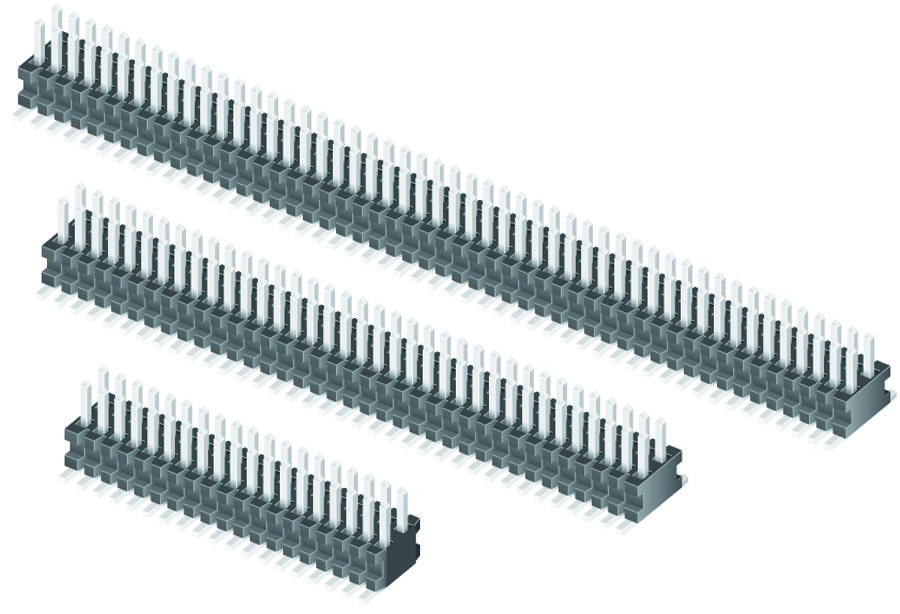

SAMTEC FTE12001GDV Micro Terminal Header
The FTE series from Samtec are compact surface-mount micro terminal strip headers designed for reliable connections with the Samtec CLE series. Made from durable black liquid crystal polymer insulators and phosphor bronze contacts with 10 microns of gold plating, these headers support multiple lengths and configurations, including options with end shrouds and locking clips. They feature a 0.8mm pitch, operate from -55°C to +125°C, and have a current rating of 2.7A per pin, ideal for industrial and electronic applications requiring high reliability and miniature size.
SAMTEC FTE12001GDV Micro Terminal Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50µ" Ni
- Pitch: 0.8 mm
- Operating Temperature: -55°C to +125°C
- Current Rating: 2.7A per pin
- RoHS Compliant: Yes
- Contact Style: Vertical double-row
- Number of Positions: 5 to 90 per row
- Mounting Type: Surface-mount
- Lead Coplanarity: Max 0.004 inch
- Packaging: Available with end shrouds and optional guides
- Suitable for fine-pitch PCB connections and blind mating
- Product Series: FTE from Samtec
Buy the Buy Samtec FTE12001GDV Part Number FTE12001GDV Online
Order the Samtec FTE12001GDV micro terminal header today for dependable, high-precision connections in industrial and electronic applications. These surface-mount headers feature a compact, low-profile design with 0.8mm pitch, gold-plated contacts, and various configurations including end shrouds and locking clips. Made from durable black liquid crystal polymer and phosphor bronze, they operate from -55°C to +125°C and support up to 2.7A per pin. Perfect for engineers seeking reliable, miniature, and easy-to-assemble PCB component solutions.
Get Samtec FTE12001GDV today—built for precision, reliability, and high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC FTE12001GDV?
You can click on the BUY or RFQ button to purchase FTE12001GDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTE12001GDV?
You can download the FTE12001GDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTE12001GDV?
SAMTEC
