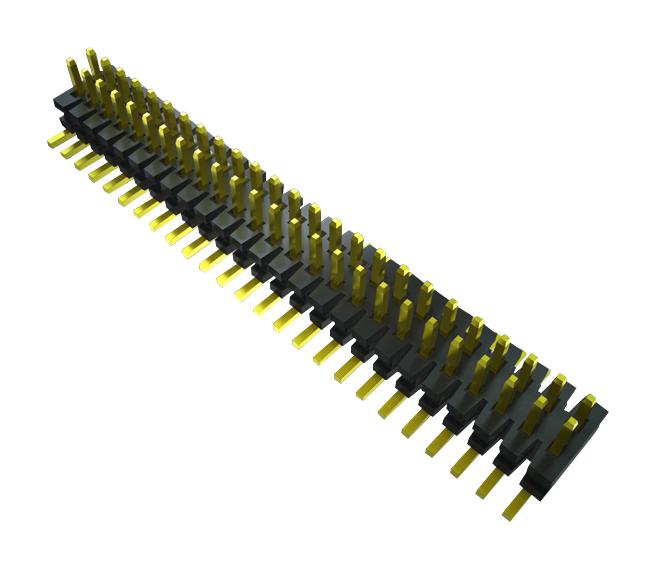

SAMTEC FTMH10603FDH Micro Terminal Strip
The FTMH10603FDH is a high-quality, low-profile shrouded micro terminal strip designed for compact electronic assemblies. Made with durable phosphor bronze contacts and liquid crystal polymer insulators, it supports currents up to 2.8 A per pin. The terminal features RoHS compliance, lead-free solderability, and optional configurations like molded end shrouds and alignment pins. Suitable for PCB mounting, it offers coplanarity of 0.10 mm, ensuring precise fit and reliable connections. Compatible with various mating headers, it serves in demanding electronic and automation applications, supporting high-density, secure, and easy-to-assemble connections in constrained spaces.
SAMTEC FTMH10603FDH Micro Terminal Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Current Rating: 2.8 A per pin
- Operating Temperature Range: -55°C to +125°C
- Lead Coplanarity: 0.10 mm (0.004 inch)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Available Options: End shrouds with board locks, molded end shrouds, different platings
- Mounting Type: Surface Mount
- Number of positions: Variable, up to 46 positions
- Dimensions: Low profile approx. 1.79 mm height, with various pitch options
- Contact Coating: Gold on post, Matte Tin on tail
- Mates With: CLM, MLE headers
Buy the Buy Samtec FTMH10603FDH Part Number FTMH10603FDH Online
Order the Samtec FTMH10603FDH micro terminal strip today for reliable electrical connections in tight spaces. Engineered with durable materials, RoHS compliance, and optional configurations like end shrouds and alignment pins, it ensures high performance and easy installation. Compatible with various headers, it delivers a secure fit and excellent electrical conductivity, making it ideal for demanding automation, industrial, and electronic applications. Purchase online and enjoy fast delivery, technical support, and competitive pricing for your precision assembly needs.
Get Samtec FTMH10603FDH today—built for precision, reliability, and optimal space-saving in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FTMH10603FDH?
You can click on the BUY or RFQ button to purchase FTMH10603FDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTMH10603FDH?
You can download the FTMH10603FDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTMH10603FDH?
SAMTEC
